XBDBLU-00-0000-000000Z05

Active

Cree LED

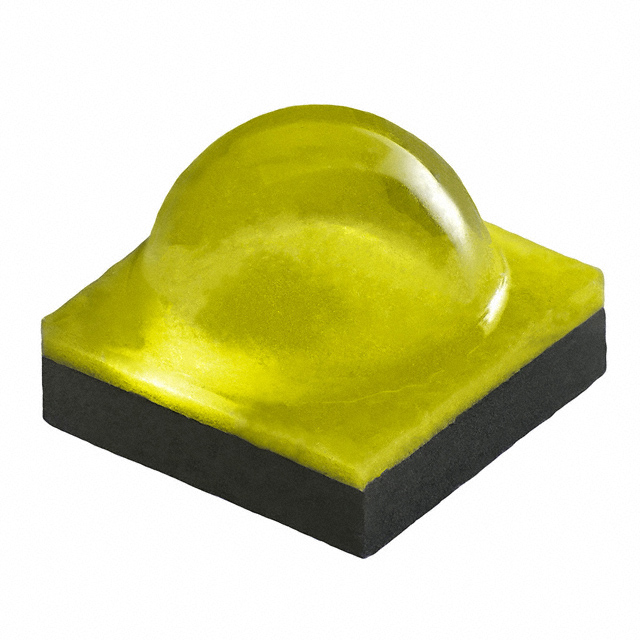

XLAMP XB-D LIGHT EMITTING DIODE BLUE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Cree LED

XLAMP XB-D LIGHT EMITTING DIODE BLUE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	XBDBLU-00-0000-000000Z05

Color	Blue
Current - Max [Max]	1 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	1.97 mm
Height - Seated (Max) [Max] [z]	0.078 "
Lumens/Watt @ Current - Test	35 lm/W
Luminous Flux @ Current/Temperature	38 lm
Luminous Flux @ Current/Temperature [Max]	40 lm
Luminous Flux @ Current/Temperature [Min]	35 lm
Mounting Type	Surface Mount
Package / Case	1010 (2525 Metric)
Size / Dimension [x]	2.45 mm
Size / Dimension [x]	0.096 "
Size / Dimension [y]	0.096 in
Size / Dimension [y]	2.45 mm
Supplier Device Package	SMD
Thermal Resistance of Package	6.5 °C/W
Viewing Angle	135 °
Voltage - Forward (Vf) (Typ)	3.1 V
Wavelength	475 nm
Wavelength [Max]	480 nm
Wavelength [Min]	470 nm

Part	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Mounting Type	Viewing Angle	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Color	Wavelength [Max]	Wavelength [Min]	Wavelength	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Thermal Resistance of Package	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Cree LED XBDBLU-00-0000-000000305	1010	2.95 V	42 lm/W	Surface Mount	125 °	350 mA	2.45 mm	0.096 in	2.45 mm	0.096 "	43 lm	Blue	480 nm	470 nm	475 nm	1010 (2525 Metric)	1.97 mm	0.078 "	1 A
Cree LED XBDBLU-00-0000-000000Z05	SMD	3.1 V	35 lm/W	Surface Mount	135 °	350 mA	2.45 mm	0.096 in	2.45 mm	0.096 "	38 lm	Blue	480 nm	470 nm	475 nm	1010 (2525 Metric)	1.97 mm	0.078 "	1 A	6.5 °C/W	35 lm	40 lm
Cree LED XBDBLU-00-0000-000000Y02	SMD	3.1 V	30 lm/W	Surface Mount	135 °	350 mA	2.45 mm	0.096 in	2.45 mm	0.096 "	33 lm	Blue	480 nm	465 nm		1010 (2525 Metric)	1.97 mm	0.078 "	1 A	6.5 °C/W
Cree LED XBDBLU-00-0000-000000401	1010	2.95 V	53 lm/W	Surface Mount	125 °	350 mA	2.45 mm	0.096 in	2.45 mm	0.096 "	55 lm	Blue	485 nm	465 nm	475 nm	1010 (2525 Metric)	1.97 mm	0.078 "	1 A
Cree LED XBDBLU-00-0000-000000402	1010	2.95 V	53 lm/W	Surface Mount	125 °	350 mA	2.45 mm	0.096 in	2.45 mm	0.096 "	55 lm	Blue	480 nm	465 nm		1010 (2525 Metric)	1.97 mm	0.078 "	1 A
Cree LED XBDBLU-00-0000-000000302	1010	2.95 V	42 lm/W	Surface Mount	125 °	350 mA	2.45 mm	0.096 in	2.45 mm	0.096 "	43 lm	Blue	480 nm	465 nm		1010 (2525 Metric)	1.97 mm	0.078 "	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color XLamp® XB-D Blue 475nm (470nm ~ 480nm) 1010 (2525 Metric)
