A221Y20VXX

Active

Nicomatic

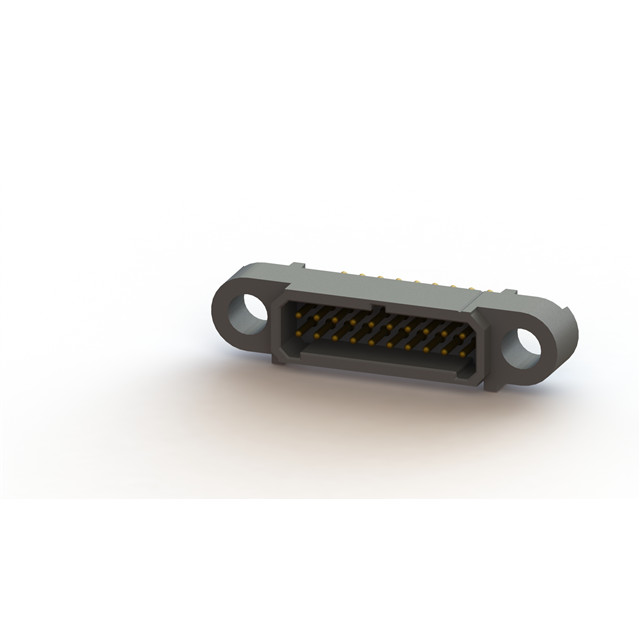

MALE 20POS STRAIGHT TRGH 1MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 20POS STRAIGHT TRGH 1MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A221Y20VXX	A221Y20V Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Finish Thickness - Post	0.15 µm	0.15 µm
Contact Finish Thickness - Post	5.9 µin	5.9 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2.5 A	2.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Mating Flange	Mating Flange, Mounting Flange, Mounting Hardware
Insulation Color	Black	Black
Insulation Height	0.161 in	0.161 in
Insulation Height	4.1 mm	4.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Row Spacing - Mating	0.039 "	0.039 "
Row Spacing - Mating	1 mm	1 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

MALE 20POS STRAIGHT TRGH 1MM

Part	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Fastening Type	Style	Contact Type	Contact Shape	Voltage Rating	Material Flammability Rating	Contact Finish - Mating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Mounting Type	Shrouding	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Connector Type	Insulation Height	Insulation Height
Nicomatic A221Y20VXX	2.5 A	0.039 in	1 mm	All	Push-Pull	Board to Board, Cable	Male Pin	Circular	600 VAC	UL94 V-0	Gold	Mating Flange	0.15 µm	5.9 µin	20	Gold	0.039 "	1 mm	Copper Alloy	Through Hole	Shrouded - 4 Wall	Solder	-65 ░C	200 °C	Liquid Crystal Polymer (LCP)	Black	0.15 µm	5.9 µin	2	Header	0.161 in	4.1 mm
Nicomatic A221Y20V22	2.5 A	0.039 in	1 mm	All		Board to Board, Cable	Male Pin	Circular	600 VAC	UL94 V-0	Gold	Mating Flange, Mounting Flange, Mounting Hardware	0.15 µm	5.9 µin	20	Gold	0.039 "	1 mm	Copper Alloy	Through Hole	Shrouded - 4 Wall	Solder	-65 ░C	200 °C	Liquid Crystal Polymer (LCP)	Black	0.15 µm	5.9 µin	2	Header	0.161 in	4.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 20 position 0.039" (1.00mm)
