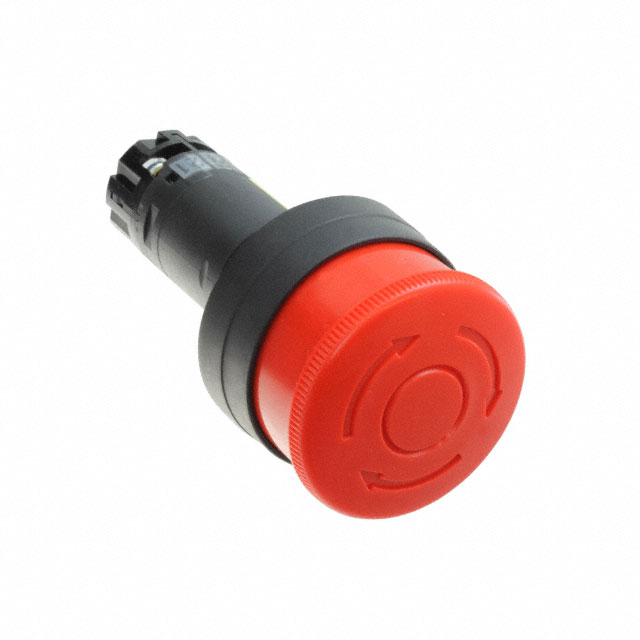

HW1E-TV4F11QD-R-24V

Active

IDEC Corporation

SWITCH ESTOP PULL RESET 10A 110V

Search across all available documentation for this part.

Active

IDEC Corporation

SWITCH ESTOP PULL RESET 10A 110V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SWITCH ESTOP PULL RESET 10A 110V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	HW1E-TV4F11QD-R-24V	HW1E Series

Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	8 A, 10 A	8 - 10 A
Features	Illuminated (Red)	Illuminated (Red)
Illumination Voltage (Nominal)	24 VAC/DC	24 VAC/DC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Reset Operation	Pull	Twist, Pull
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	110 V	110 V
Voltage Rating - DC	24 V	24 V

SW E-STOP TWIST RESET 10A 110V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Circuit	Ingress Protection	Current Rating (Amps)	Mounting Type	Switch Function	Reset Operation	Voltage Rating - AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Features
IDEC Corporation HW1E-BV4F11-R	22.3 mm	24 V	DPST-NO/NC	IP65 - Dust Tight, Water Resistant	8 A, 10 A	Panel Mount, Front	Off-On, On-Off	Twist	110 V	Screw Terminal	50 °C	-25 °C
IDEC Corporation HW1E-TV4F11QD-R-24V	22.3 mm	24 V	DPST-NO/NC	IP65 - Dust Tight, Water Resistant	8 A, 10 A	Panel Mount, Front	Off-On, On-Off	Pull	110 V	Screw Terminal	50 °C	-25 °C	24 VAC/DC	Illuminated (Red)
