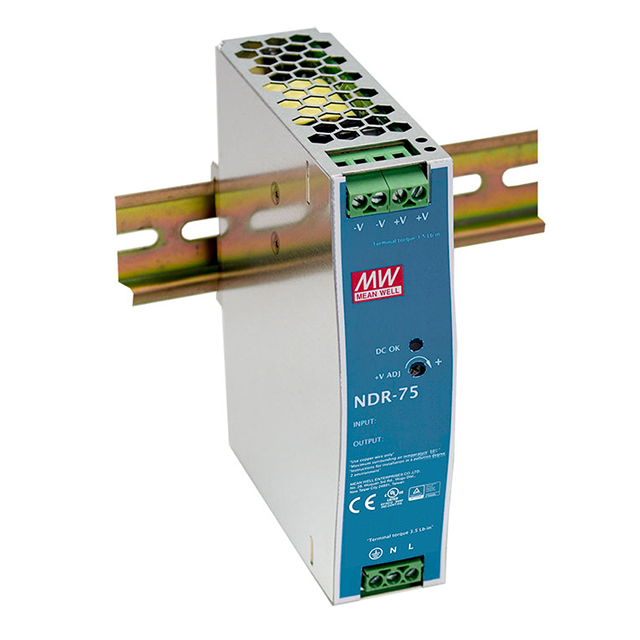

NDR-75-24

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 24V 77W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 24V 77W

Technical Specifications

Parameters and characteristics for this part

Specification	NDR-75-24

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	Industrial, ITE (Commercial)
Current - Output (Max) [Max]	3.2 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	127 V
Efficiency	88 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	77 W
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Voltage - Isolation	Voltage - Output 1	Efficiency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Minimum Load Required	Applications	DC Voltage - Input (Min) [Min]	Number of Outputs	Input Type	DC Voltage - Input (Max) [Max]
MEAN WELL USA Inc. NDR-75-24	3000 V	24 V	88 %	77 W	-20 °C	70 °C	3.2 A	Adjustable Output Universal Input	90 VAC	264 VAC		Industrial ITE (Commercial)	127 V	1	AC or DC	370 V
MEAN WELL USA Inc. NDR-75-12	3000 V	12 V	85.5 %	76 W	-20 °C	70 °C	6.3 A	Adjustable Output Universal Input	90 VAC	264 VAC		Industrial ITE (Commercial)	127 V	1	AC or DC	370 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 77W
