74ALVCH32245BFG8

Active

Renesas Electronics Corporation

3.3V CMOS 32-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS AND BUS-HOLD

Find alt

Alpha

74ALVCH32245BFG8

Active

Renesas Electronics Corporation

3.3V CMOS 32-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS AND BUS-HOLD

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

74ALVCH32245 Series

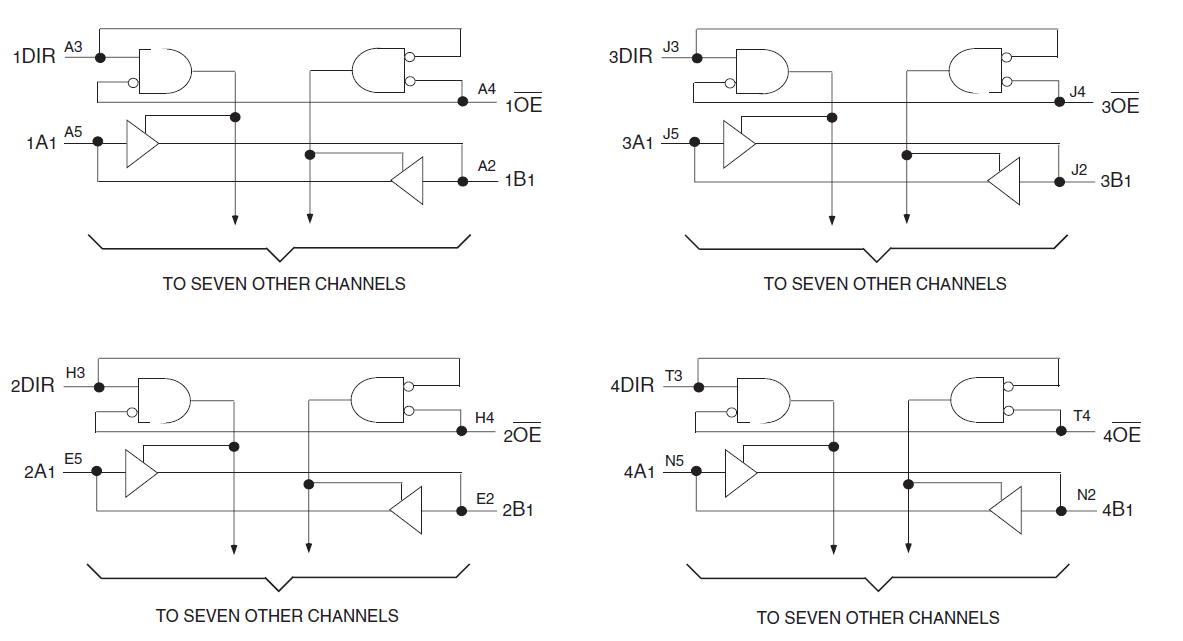

The 74ALVCH32245 high-speed, low power 32-bit bus transceiver is ideal for asynchronous communication between two busses. The Direction and Output Enable controls are designed to operate the device as either four independent 8-bit transceivers or one 32-bit transceiver. The 74ALVCH32245 has "bus-hold" which prevents floating inputs and eliminates the need for pull-up/down resistors. The 74ALVCH32245 operates at -40C to +85C

Technical Specifications

Parameters and characteristics for this part

Specification	74ALVCH32245BFG8

Current - Output High	24 mA
Current - Output Low	24 mA
Logic Type	Non-Inverting, Transceiver
Mounting Type	Surface Mount
Number of Bits per Element	8 bits
Number of Elements	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Type	3-State
Package / Case	96-LFBGA
Package Length	13.5 mm
Package Name	96-CABGA
Package Width	5.5 mm
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	2.7 V

74ALVCH32245 Series

Part	Output Type	Number of Bits per Element	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Package Width	Package Length	Package / Case	Number of Elements	Logic Type	Mounting Type	Current - Output Low	Current - Output High
Renesas Electronics Corporation 74ALVCH32245BF	3-State	8 bits	3.6 V	2.7 V	85 °C	-40 °C	96-CABGA	5.5 mm	13.5 mm	96-LFBGA	4	Non-Inverting Transceiver	Surface Mount	24 mA	24 mA
Renesas Electronics Corporation 74ALVCH32245BF8	3-State	8 bits	3.6 V	2.7 V	85 °C	-40 °C	96-CABGA	5.5 mm	13.5 mm	96-LFBGA	4	Non-Inverting Transceiver	Surface Mount	24 mA	24 mA
Renesas Electronics Corporation 74ALVCH32245BFG8	3-State	8 bits	3.6 V	2.7 V	85 °C	-40 °C	96-CABGA	5.5 mm	13.5 mm	96-LFBGA	4	Non-Inverting Transceiver	Surface Mount	24 mA	24 mA
Renesas Electronics Corporation 74ALVCH32245BFG	3-State	8 bits	3.6 V	2.7 V	85 °C	-40 °C	96-CABGA	5.5 mm	13.5 mm	96-LFBGA	4	Non-Inverting Transceiver	Surface Mount	24 mA	24 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

74ALVCH32245BFG8 | Datasheet

74ALVCH32245 Datasheet
