800-1403-0-SJT0-BL-00150

Obsolete

CnC Tech, LLC

CORD 14AWG IEC320 RA - CBL 4.92'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

800-1403-0-SJT0-BL-00150

Obsolete

CnC Tech, LLC

CORD 14AWG IEC320 RA - CBL 4.92'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800-1403-0-SJT0-BL-00150

1st Connector	Right Angle, IEC 320-C13
2nd Connector	Cable
Approval Agency Marking	CSA, UL
Approved Countries	United States, Canada
Color	Black
Cord Type	SJT
Length	4.92 '
Length	1.5 m
Number of Conductors	3
Operating Temperature	60 °C
Shielding	Unshielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	125 VAC
Wire Gauge	13.5 AWG

800-1403 Series

Part	Wire Gauge	Color	Shielding	1st Connector	Approved Countries	Number of Conductors	Current Rating (Amps)	Approval Agency Marking	2nd Connector	Voltage Rating	Cord Type	Operating Temperature	Style	Length [x]	Length [x]	Length	Length
CnC Tech, LLC 800-1403-2-SJT0-BL-00200	13.5 AWG	Black	Unshielded	IEC 320-C13 Right Angle	Canada United States	3	15 A	cUL UL	Cable	250 VDC	SJT	105 C	Female Sockets (Slots) to Leads	2 m	6.56 ft
CnC Tech, LLC 800-1403-0-SJT0-BL-00150	13.5 AWG	Black	Unshielded	IEC 320-C13 Right Angle	Canada United States	3		CSA UL	Cable	125 VAC	SJT	60 °C	Female Sockets (Slots) to Leads			4.92 '	1.5 m
CnC Tech, LLC 800-1403-2-SJT0-BL-00050	13.5 AWG	Black	Unshielded	IEC 320-C13 Right Angle	Canada United States	3	15 A	CSA UL	Cable	250 VDC	SJT	105 C	Female Sockets (Slots) to Leads	500 mm	1.64 ft
CnC Tech, LLC 800-1403-2-SJT0-BL-00100	13.5 AWG	Black	Unshielded	IEC 320-C13 Right Angle	Canada United States	3	15 A	CSA UL	Cable	250 VDC	SJT	105 C	Female Sockets (Slots) to Leads	1 m	3.28 ft
CnC Tech, LLC 800-1403-2-SJT0-BL-00050-1	13.5 AWG	Black	Unshielded	IEC 320-C13 Right Angle	Canada United States	3	15 A	cUL UL	Cable	250 VDC	SJT	105 C	Female Sockets (Slots) to Leads	500 mm	1.64 ft
CnC Tech, LLC 800-1403-2-SJT0-BL-00200-1	13.5 AWG	Black	Unshielded	IEC 320-C13 Right Angle	Canada United States	3	15 A	CSA UL	Cable	250 VDC	SJT	105 C	Female Sockets (Slots) to Leads	2 m	6.56 ft
CnC Tech, LLC 800-1403-2-SJT0-BL-00100-1	13.5 AWG	Black	Unshielded	IEC 320-C13 Right Angle	Canada United States	3	15 A	cUL UL	Cable	250 VDC	SJT	105 C	Female Sockets (Slots) to Leads	1 m	3.28 ft
CnC Tech, LLC 800-1403-0-SJT0-BL-00050	13.5 AWG	Black	Unshielded	IEC 320-C13 Right Angle	Canada United States	3		CSA UL	Cable	125 VAC	SJT	60 °C	Female Sockets (Slots) to Leads	500 mm	1.64 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

800-1403 Series

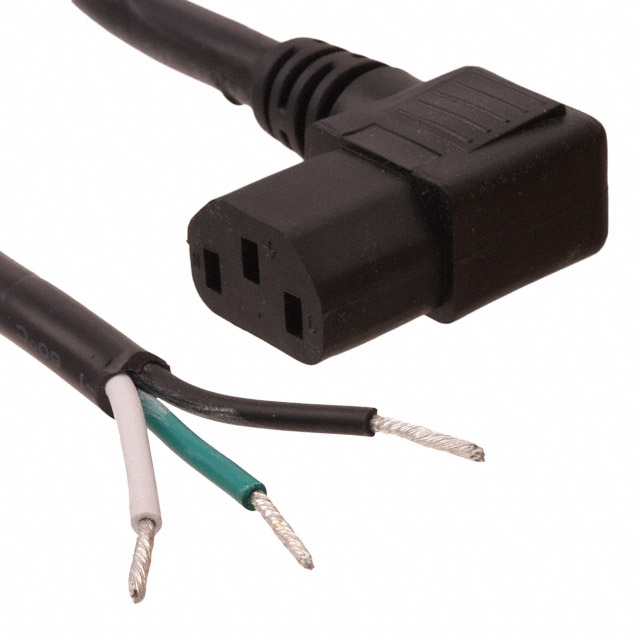

4.92' (1.50m) Power Cord Black IEC 320-C13, Right Angle To Cable SJT
