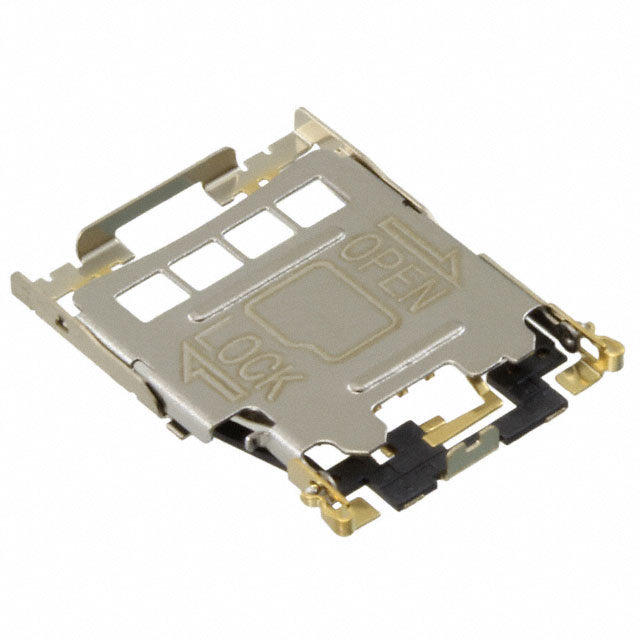

Specification	C2777-ST1W008S4TR300

Card Type	microSD™, Secure Digital
Connector Type	Connector, Ejector
Contact Finish	Gold
Contact Finish Thickness	19.7 µin
Height Above Board	0.079 in
Insertion, Removal Method	Hinged Lid
Mounting Feature	Top, Normal, Standard
Mounting Type	Right Angle, Surface Mount
Number of Positions	8

ST1W008S Series

Part	Height Above Board	Connector Type	Insertion, Removal Method	Card Type	Mounting Feature	Number of Positions	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Features
JAE Electronics ST1W008S4ER1500	0.079 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	8	Gold	Right Angle Surface Mount	0	Flash	Flash
JAE Electronics ST1W008S4AC100	0.079 in	Connector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	8	Gold	Right Angle Surface Mount
JAE Electronics ST1W008S4GR300	0.055 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	8	Gold	Right Angle Surface Mount	20 µin
JAE Electronics C2777-ST1W008S4TR300	0.079 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	8	Gold	Right Angle Surface Mount	19.7 µin
JAE Electronics ST1W008S4BR1500	0.079 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	9	Gold	Right Angle Surface Mount	20 µin			Switch
JAE Electronics ST1W008S4E	0.079 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	8	Gold	Right Angle Surface Mount	19.7 µin
JAE Electronics ST1W008S4DR1500	0.079 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	9	Gold	Right Angle Surface Mount	19.7 µin			Switch
JAE Electronics ST1W008S4TR2000	0.055 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	9	Gold	Right Angle Surface Mount	19.7 µin			Switch
JAE Electronics ST1W008S4AR1500	0.079 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	8	Gold	Right Angle Surface Mount	19.7 µin
JAE Electronics ST1W008S4GR2000	0.055 in	Connector Ejector	Hinged Lid	microSD™ Secure Digital	Normal Standard Top	8	Gold	Right Angle Surface Mount
