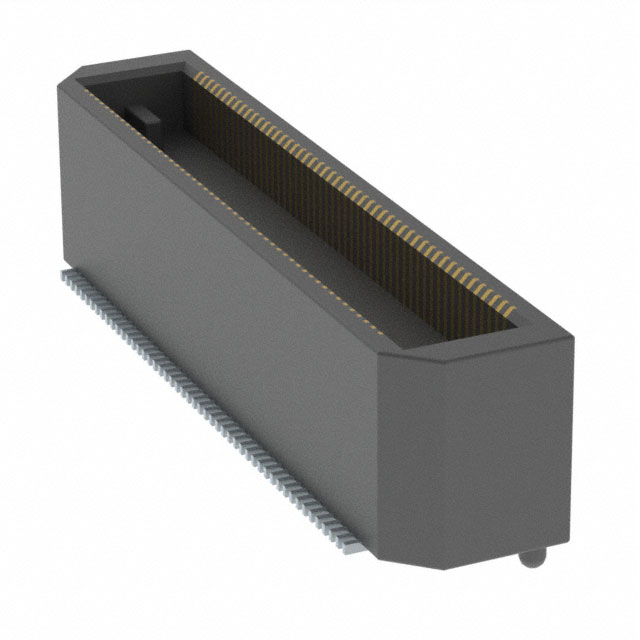

BTH-050-02-F-D-A-K-TR

Active

Samtec Inc.

CONN HDR 100POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-050-02-F-D-A-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide
Height Above Board	7.26 mm
Height Above Board	0.286 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Features
Samtec Inc. BTH-050-02-L-D-A	100	Gold	10 Áin	0.25 Ám	8 mm	7.26 mm	0.286 "	2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts	Board Guide
Samtec Inc. BTH-050-01-H-D-LC-TR	100	Gold	30 Áin	0.76 Ám	5 mm			2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts
Samtec Inc. BTH-050-01-L-D-K-TR	100	Gold	10 Áin	0.25 Ám	5 mm			2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts
Samtec Inc. BTH-050-01-C-D-A-K	100	Gold	50 µin	1.27 µm	5 mm			2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts	Board Guide
Samtec Inc. BTH-050-01-L-D-A-TR	100	Gold	10 Áin	0.25 Ám	5 mm			2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts	Board Guide
Samtec Inc. BTH-050-01-H-D-TR	100	Gold	30 Áin	0.76 Ám	5 mm			2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts
Samtec Inc. BTH-050-01-L-D-A-K	100	Gold	10 Áin	0.25 Ám	5 mm			2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts	Board Guide
Samtec Inc. BTH-050-01-F-D-A-TR	100	Gold	3 Áin	0.076 Ám	5 mm			2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts	Board Guide
Samtec Inc. BTH-050-01-C-D-A	100	Gold	50 µin	1.27 µm	5 mm			2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts	Board Guide
Samtec Inc. BTH-050-02-F-D-A-K-TR	100	Gold	3 Áin	0.076 Ám	8 mm	7.26 mm	0.286 "	2	0.5 mm	0.02 in	Surface Mount	Header Outer Shroud Contacts	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	275	$ 5.45

General part information

100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
