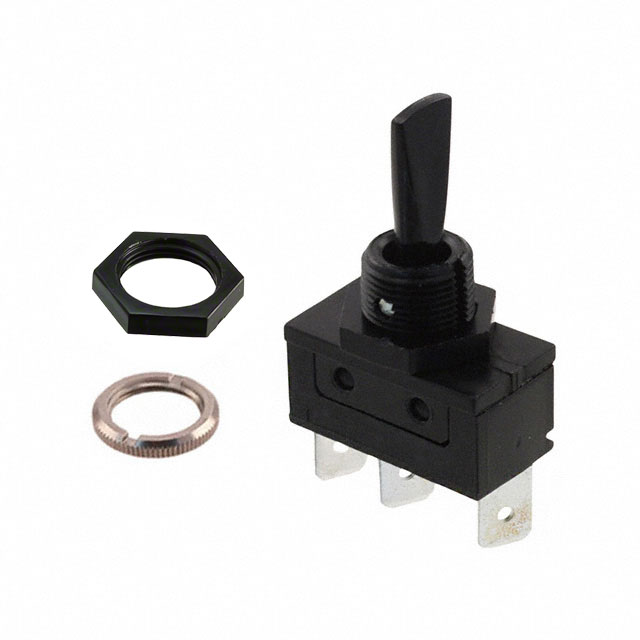

C1720H
ActiveBULGIN LIMITED
SWITCH TOGGLE SPDT 20A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1720H
ActiveBULGIN LIMITED
SWITCH TOGGLE SPDT 20A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1720H |
|---|---|
| Actuator Length | 16.4 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Type | Flatted |
| Bushing Thread | 15/32-32 |
| Circuit | SPDT |
| Current Rating (Amps) | 20 A |
| Illumination | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 12.7 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.81 | |
| 10 | $ 7.92 | |||
| 25 | $ 7.55 | |||
| 50 | $ 7.23 | |||
| 100 | $ 6.94 | |||
| 250 | $ 6.58 | |||
| 500 | $ 6.09 | |||
| 1000 | $ 5.81 | |||
Description
General part information
C1720 Series
Toggle Switch SPDT Panel Mount
