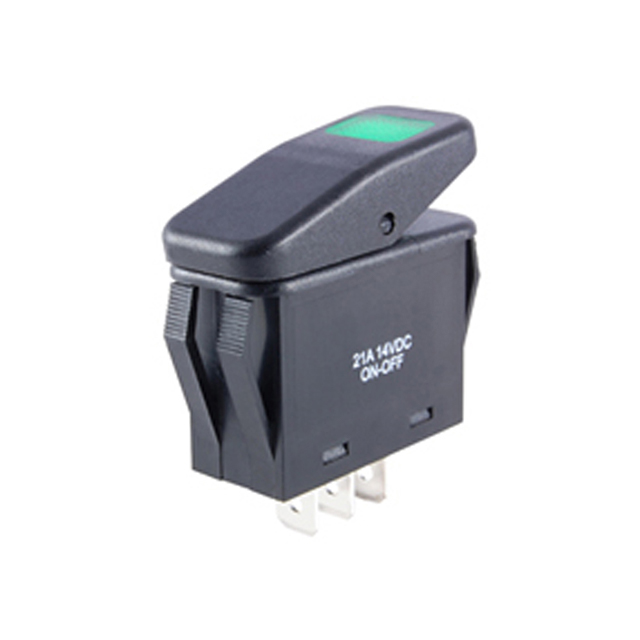

54-220W

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 20A 125V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	54-220W

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SWITCH ROCKER SPST 20A 125V

Part	Color - Actuator/Cap	Termination Style	Actuator Type	Illumination Voltage (Nominal)	Voltage Rating - AC	Circuit	Switch Function	Mounting Type	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Current Rating (Amps)	Actuator Marking
NTE Electronics, Inc 54-220W	Black	Solder Lug	Convex (Reverse V) - Illuminated	12 VDC	125 V	SPST	On-Off	Panel Mount, Snap-In	Green, LED	85 °C	-20 C	IP65 - Dust Tight, Water Resistant	20 A	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
