31-342-RFX

Active

Amphenol RF

CONN BNC JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	31-342-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

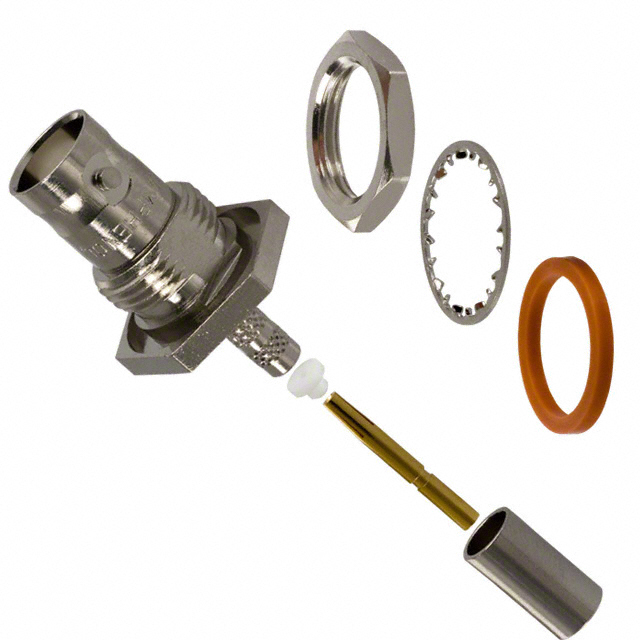

Includes	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Number of Ports	Fastening Type	Connector Style	Voltage Rating	Includes	Contact Termination	Insertion Loss	Center Contact Material	Cable Group	Mating Cycles	Body Finish	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Body Material	Dielectric Material	Connector Type	Impedance	Mounting Feature	Frequency - Max [Max]
Amphenol RF 31-342-RFX	Crimp	1	Bayonet Lock	BNC	500 V	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Crimp	0.2 dB	Phosphor Bronze	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500	Nickel	Gold	-65 ░C	165 °C	Silver	Brass	Polytetrafluoroethylene (PTFE)	Female Socket Jack	50 Ohms	Bulkhead - Front Side Nut	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp

Technical documentation and resources
