2SEPC330MW

Obsolete

Panasonic Industrial Automation Sales

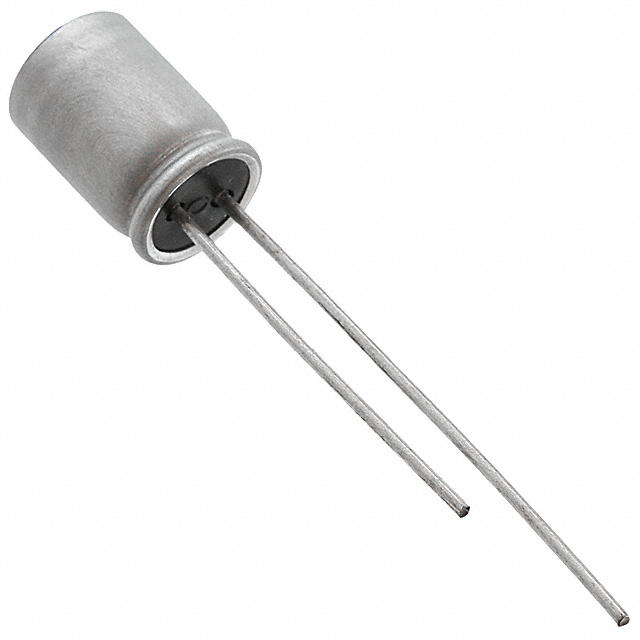

CAP ALUM POLY 330UF 20% 2.5V TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2SEPC330MW

Obsolete

Panasonic Industrial Automation Sales

CAP ALUM POLY 330UF 20% 2.5V TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2SEPC330MW

Applications	General Purpose
Capacitance	330 µF
ESR (Equivalent Series Resistance)	7 mOhms
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Lead Spacing	0.098 in
Lead Spacing	2.5 mm
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	5.6 A
Ripple Current @ Low Frequency	280 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	2.5 V

2SEPC Series

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Tolerance	Lifetime @ Temp.	Mounting Type	Applications	Capacitance	Ripple Current @ High Frequency	Voltage - Rated	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales 2SEPC100MZ	5 mm	0.197 "	Polymer	105 ░C	-55 °C	2 mm	0.079 in	7 mOhms	20 %	5000 Hrs	Through Hole	General Purpose	100 µF	4.18 A	2.5 V	Radial Can	0.354 in	9 mm
Panasonic Industrial Automation Sales 2SEPC820MY+TSS	8 mm	0.315 "	Polymer	105 ░C	-55 °C	3.5 mm	0.138 in	5 mOhm	20 %	5000 Hrs	Through Hole	General Purpose	820 µF	7.2 A	2.5 V	Radial Can	0.354 in	9 mm	360 mA
Panasonic Industrial Automation Sales 2SEPC330MW	6.3 mm	0.248 in	Polymer	105 ░C	-55 °C	2.5 mm	0.098 in	7 mOhms	20 %	5000 Hrs	Through Hole	General Purpose	330 µF	5.6 A	2.5 V	Radial Can	0.354 in	9 mm	280 mA
Panasonic Industrial Automation Sales 2SEPC470MZ+TSS	5 mm	0.197 "	Polymer	105 ░C	-55 °C	2 mm	0.079 in	7 mOhms	20 %	5000 Hrs	Through Hole	General Purpose	470 µF	4.18 A	2.5 V	Radial Can	0.354 in	9 mm
Panasonic Industrial Automation Sales 2SEPC820MX	8 mm	0.315 "	Polymer	105 ░C	-55 °C	3.5 mm	0.138 in	7 mOhms	20 %	5000 Hrs	Through Hole	General Purpose	820 µF	6.1 A	2.5 V	Radial Can	0.354 in	9 mm	305 mA
Panasonic Industrial Automation Sales 2SEPC820MD	8 mm	0.315 "	Polymer	105 ░C	-55 °C	3.5 mm	0.138 in	8 mOhms	20 %	5000 Hrs	Through Hole	General Purpose	820 µF	5.3 A	2.5 V	Radial Can	0.276 "	7 mm	265 mA
Panasonic Industrial Automation Sales 2SEPC560MX+TSS	8 mm	0.315 "	Polymer	105 ░C	-55 °C	3.5 mm	0.138 in	8 mOhms	20 %	5000 Hrs	Through Hole	General Purpose	560 µF	4.7 A	2.5 V	Radial Can	0.354 in	9 mm	235 mA
Panasonic Industrial Automation Sales 2SEPC820MD+TSS	8 mm	0.315 "	Polymer	105 ░C	-55 °C	3.5 mm	0.138 in	8 mOhms	20 %	5000 Hrs	Through Hole	General Purpose	820 µF	5.3 A	2.5 V	Radial Can	0.276 "	7 mm	265 mA
Panasonic Industrial Automation Sales 2SEPC1000MX	8 mm	0.315 "	Polymer	105 ░C	-55 °C	3.5 mm	0.138 in	7 mOhms	20 %	5000 Hrs	Through Hole	General Purpose	1000 µF	6.1 A	2.5 V	Radial Can	0.354 in	9 mm	305 mA
Panasonic Industrial Automation Sales 2SEPC2700M+T	10 mm	0.394 in	Polymer	105 ░C	-55 °C	5 mm	0.197 in	10 mOhm	20 %	5000 Hrs	Through Hole	General Purpose	2700 µF	5.56 A	2.5 V	Radial Can			278 mA	13 mm	0.512 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2SEPC Series

330 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can 7mOhm 5000 Hrs @ 105°C
