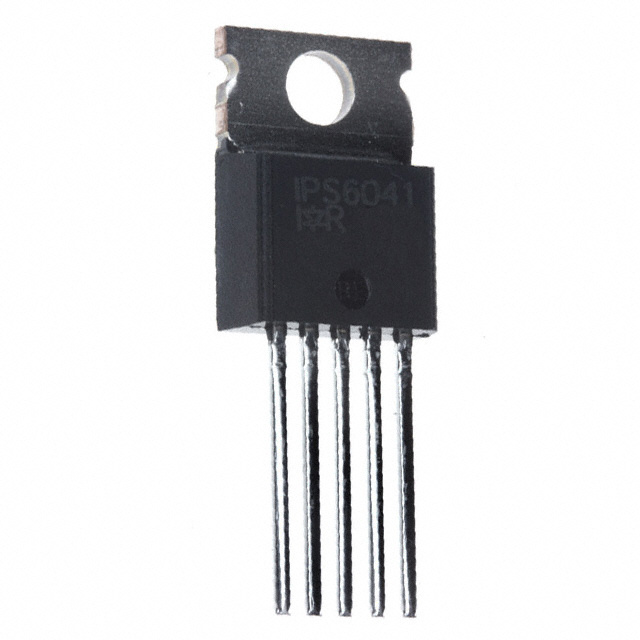

IPS6041PBF

Obsolete

Infineon Technologies

IC PWR SWITCH HI SIDE TO220AB

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC PWR SWITCH HI SIDE TO220AB

Technical Specifications

Parameters and characteristics for this part

Part	Fault Protection	Current - Output (Max) [Max]	Output Configuration	Rds On (Typ)	Ratio - Input:Output [custom]	Switch Type	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Features	Interface	Supplier Device Package	Input Type	Output Type	Number of Outputs	Mounting Type	Package / Case [y]	Package / Case [x]
Infineon Technologies IPS6041STRLPBF	Current Limiting (Fixed) Open Load Detect Over Temperature	2.3 A	High Side	110 mOhm	1:1	General Purpose	6 V	28 V	150 °C	-40 °C	D2PAK (4 Leads + Tab) TO-263-5 TO-263BB	Auto Restart	On/Off	D2PAK (SMD-220 5-Lead)	Non-Inverting	N-Channel	1	Surface Mount
Infineon Technologies IPS6041GTRPBF		1.6 A	High Side	110 mOhm			6 V	28 V			8-SOIC			8-SOIC	Non-Inverting		1	Surface Mount	3.9 mm	0.154 in
Infineon Technologies IPS6041PBF		2.3 A	High Side	110 mOhm			6 V	28 V			TO-220-5			TO-220AB (5-LEAD)	Non-Inverting		1	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 2.3A TO-220AB (5-LEAD)
