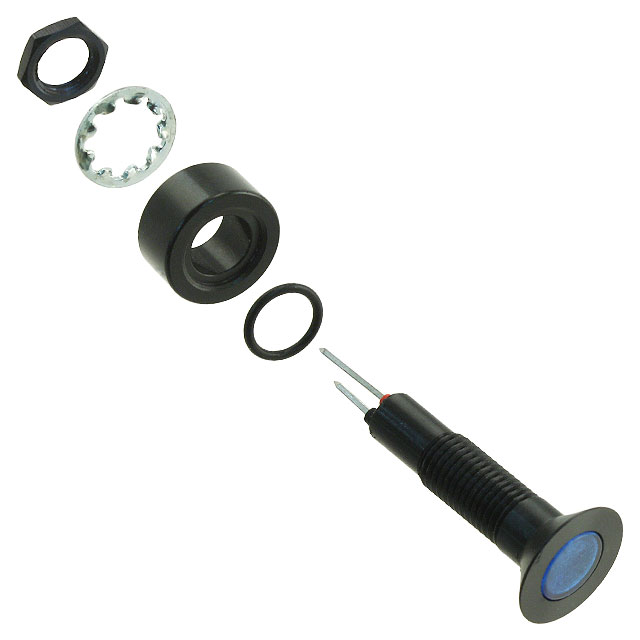

PM5-A12B12V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM BLUE, 6.1MM
PM5-A12B12V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM BLUE, 6.1MM
Description
General part information
PM5-A12B12 Series
LED Panel Indicator Blue Fresnel 120° 12V 20mA PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-A12B12V |
|---|---|
| Current | 20 mA |
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Diameter | 6.7 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Fresnel |
| Millicandela Rating | 128 mcd |
| Panel Cutout Dimension | 0.24 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | PC Pin |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage | 12 VDC |
| Wavelength - Peak | 470 nm |
