US3DB-HF

Active

Comchip Technology

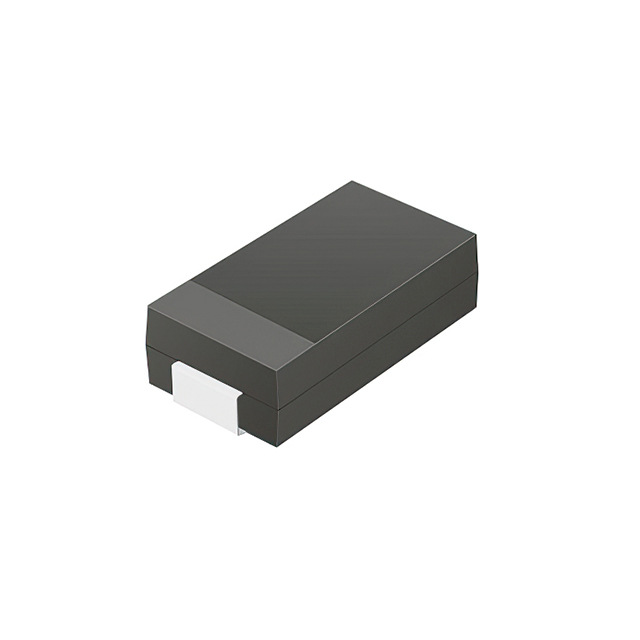

DIODE GP 200V 3A SMB/DO-214AA

Search across all available documentation for this part.

Active

Comchip Technology

DIODE GP 200V 3A SMB/DO-214AA

Technical Specifications

Parameters and characteristics for this part

Specification	US3DB-HF

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SMB, DO-214AA
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMB
Supplier Device Package	DO-214AA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DIODE GP 200V 3A SMB/DO-214AA

Part	Speed	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Package / Case	Reverse Recovery Time (trr)	Supplier Device Package	Supplier Device Package	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Technology
Comchip Technology US3DB-HF	200 mA, 500 ns	5 µA	150 °C	-55 °C	3 A	DO-214AA, SMB	50 ns	SMB	DO-214AA	Surface Mount	200 V	1 V	Standard

General part information

Diode 200 V 3A Surface Mount DO-214AA (SMB)

Technical documentation and resources

No documents available
