31-10-NB

Active

3M (TC)

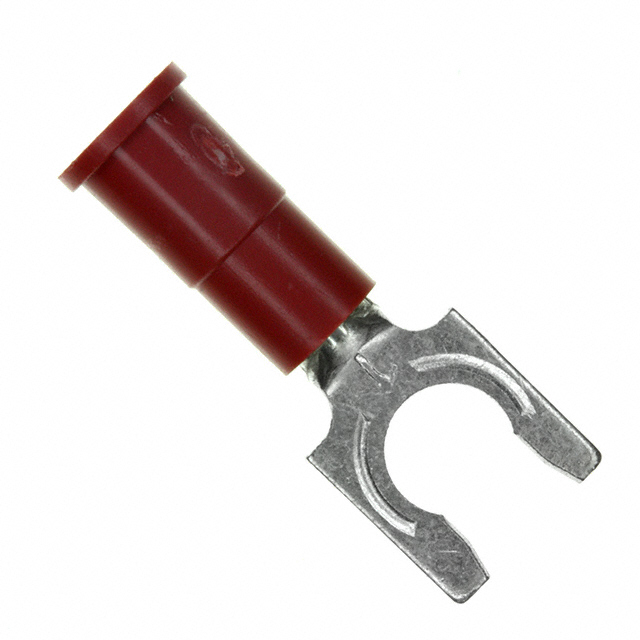

3M(TM) NYLON INSULATED WITH INSULATION GRIP FORK TERMINAL, 31-10-NB, 1,000 PER CASE

Search across all available documentation for this part.

Active

3M (TC)

3M(TM) NYLON INSULATED WITH INSULATION GRIP FORK TERMINAL, 31-10-NB, 1,000 PER CASE

Technical Specifications

Parameters and characteristics for this part

Specification	31-10-NB

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	0.89 in
Length - Overall [x]	22.61 mm
Length - Ring Center to Termination	0.29 in
Length - Ring Center to Termination	7.37 mm
Length - Termination	0.44 "
Length - Termination	11.18 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp
Width - Outer Edges	8.64 mm
Width - Outer Edges	0.34 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Length - Overall [x]	Length - Overall [x]	Color	Width - Outer Edges	Width - Outer Edges	Terminal Type	Contact Material	Insulation	Length - Termination	Length - Termination	Features	Stud/Tab Size	Termination	Contact Finish	Length - Ring Center to Termination	Length - Ring Center to Termination	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Material - Insulation	Insulation Diameter	Insulation Diameter [diameter]
3M (TC) 31-10-NB	0.89 in	22.61 mm	Red	8.64 mm	0.34 in	Standard	Copper ETP	Insulated	0.44 "	11.18 mm	Butted Seam	10 Stud	Crimp	Tin	0.29 in	7.37 mm	22 AWG	17.5 AWG	Free Hanging (In-Line)	Nylon Polyamide (PA)	3.68 mm	0.145 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG
