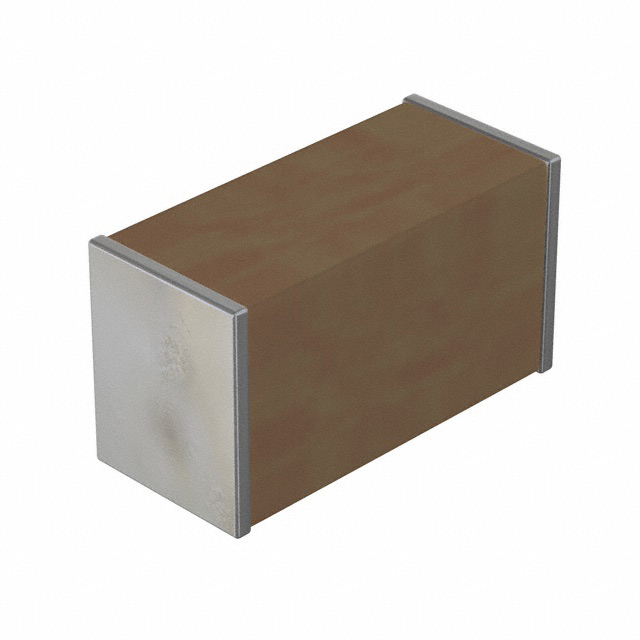

0201BW104K100YT

Active

Knowles Novacap

CAP CER 0.1UF 10V X5R 0201

Search across all available documentation for this part.

Active

Knowles Novacap

CAP CER 0.1UF 10V X5R 0201

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0201BW104K100YT	0201BW Series

Applications	SMPS Filtering	SMPS Filtering
Capacitance	100000 pF	0.033 - 100000 çF
Features	-	Bonding Mountable, Gold Flash Termination
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 Metric	0603 Metric
Package / Case	0201	0201
Size / Dimension [x]	0.6 mm	0.6 mm
Size / Dimension [x]	0.024 "	0.024 "
Size / Dimension [y]	0.3 mm	0.3 mm
Size / Dimension [y]	0.012 "	0.012 "
Temperature Coefficient	X5R	X5R
Thickness (Max) [Max]	0.013 in	0.013 in
Thickness (Max) [Max]	0.33 mm	0.33 mm
Tolerance	10 %	10 %
Voltage - Rated	10 V	10 V
Voltage - Rated	-	16 V

CAP CER 0.033UF 16V X5R 0201

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Temperature Coefficient	Features	Voltage - Rated [custom]	Applications	Package / Case	Package / Case	Mounting Type	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated
Knowles Novacap 0201BW333K160NGT	85 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	0.033 çF	X5R	Bonding Mountable, Gold Flash Termination	16 V	SMPS Filtering	0603 Metric	0201	MLCC, Surface Mount	10 %	0.013 in	0.33 mm
Knowles Novacap 0201BW104K100YT	85 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	100000 pF	X5R			SMPS Filtering	0603 Metric	0201	MLCC, Surface Mount	10 %	0.013 in	0.33 mm	10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.1 µF ±10% 10V Ceramic Capacitor X5R 0201 (0603 Metric)
