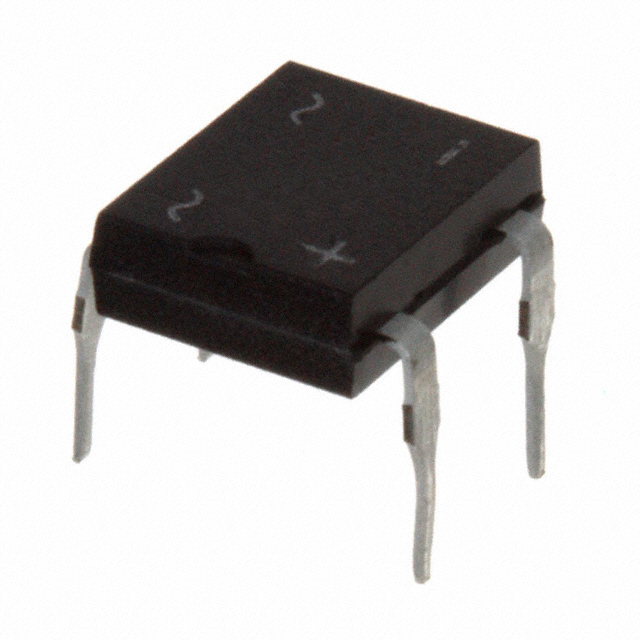

DB105-G

Active

Comchip Technology

RECTIFIER BRIDGE DIODE SINGLE 600V 1A 4-PIN CASE DB TUBE

Search across all available documentation for this part.

Active

Comchip Technology

RECTIFIER BRIDGE DIODE SINGLE 600V 1A 4-PIN CASE DB TUBE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole DB

Technical documentation and resources

No documents available

Specification	DB105-G	DB105 Series

Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-EDIP	4-SMD, Gull Wing, 4-EDIP
Package / Case	0.321 in	0.321 in
Package / Case	8.15 mm	8.15 mm
Supplier Device Package	DB	DBS, DB
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V	600 V

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Package / Case	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Package / Case
Comchip Technology DB105S-G	1.1 V	600 V	1 A	4-SMD, Gull Wing	Surface Mount	Standard	10 µA	Single Phase	-55 °C	150 °C	DBS
Comchip Technology DB105S-HF	1.1 V	600 V	1 A	4-SMD, Gull Wing	Surface Mount	Standard	10 µA	Single Phase	-55 °C	150 °C	DBS
Comchip Technology DB105-G	1.1 V	600 V	1 A	4-EDIP	Through Hole	Standard	10 µA	Single Phase	-55 °C	150 °C	DB	0.321 in	8.15 mm
