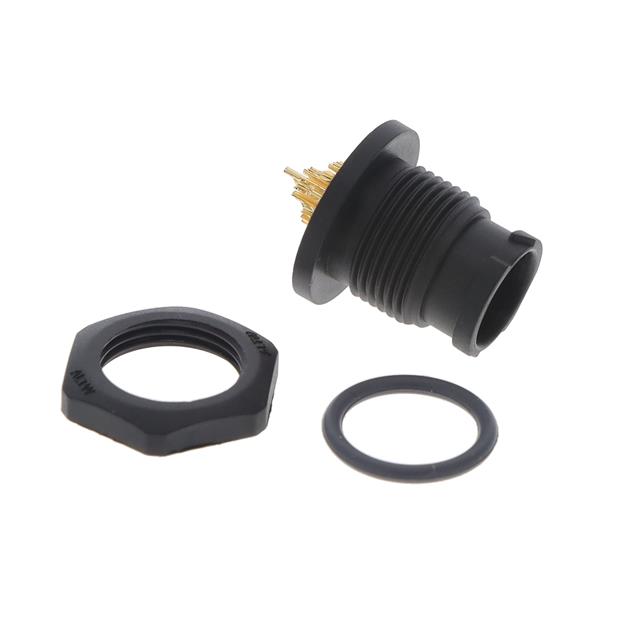

AZ-17PMMS-QC8001
ActiveAmphenol LTW
X-LOK MINI SIZE PANEL CONN 1.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ-17PMMS-QC8001
ActiveAmphenol LTW
X-LOK MINI SIZE PANEL CONN 1.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ-17PMMS-QC8001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Fastening Type | Push-Twist |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 17 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | A |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.34 | |
| 10 | $ 7.39 | |||
| 25 | $ 7.11 | |||
| 40 | $ 6.82 | |||
| 180 | $ 6.67 | |||
Description
General part information
AZ-17PMMS Series
17 (Data) Position Circular Connector Receptacle, Male Pins Solder Cup
