NGE65E18-P1J

Active

MEAN WELL USA Inc.

+18V/3.62A; 18AWG/150CM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

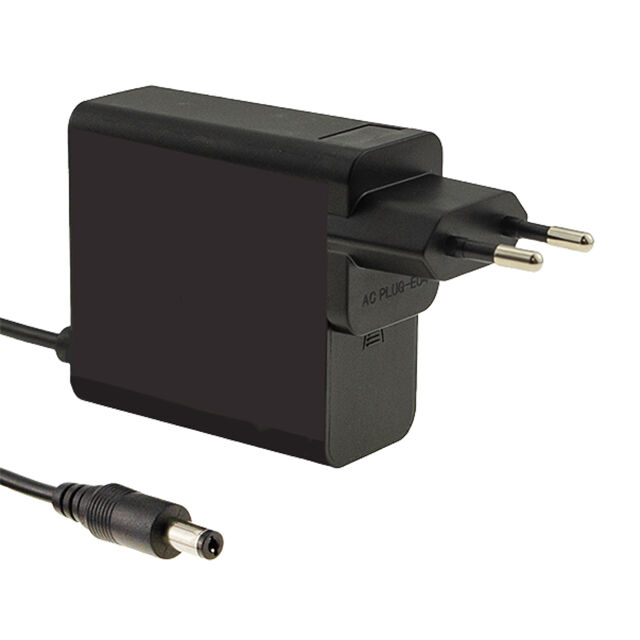

NGE65E18-P1J

Active

MEAN WELL USA Inc.

+18V/3.62A; 18AWG/150CM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NGE65E18-P1J

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, EAC, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3.62 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	KSC 8305
Input Type	Fixed Blade
No Load Power Consumption	75 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	Europe
Size / Dimension [x]	62 mm
Size / Dimension [x]	2.44 in
Size / Dimension [y]	1.18 in
Size / Dimension [y]	30 mm
Size / Dimension [z]	2.56 in
Size / Dimension [z]	65 mm
Standard Number	60335-1, 60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output	18 V

NGE Series

Part	Input Type	Approval Agency	Region Utilized	Cord Length	Cord Length	Current - Output (Max) [Max]	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Applications	Input Connector	Voltage - Output	Polarization	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Form	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
MEAN WELL USA Inc. NGE12U15-P1J	Fixed Blade	CB cULus cURus FCC PSE TUV	North America	46.65 in	1.19 m	800 mA	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	NEMA 1-15P	15 VDC	Positive Center	60335-1 60601-1 62368-1	1.1 in	48 mm	55 mm	1.89 in	2.17 "	28 mm	90 VAC	264 VAC	70 °C	-30 ░C	12 W	Wall Mount (Class II)	750 mW
MEAN WELL USA Inc. NGE30U12-P1J	Fixed Blade	CB cULus cURus FCC PSE TUV	North America	47 "	1.2 m	2.5 A	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	NEMA 1-15P	12 V	Positive Center	60335-1 60601-1 62368-1		1.18 in	2.44 in			2.56 in	80 VAC	264 VAC	70 °C	-30 ░C	30 W	Wall Mount (Class II)	75 mW	62 mm	30 mm	65 mm
MEAN WELL USA Inc. NGE65E18-P1J	Fixed Blade	CB CE EAC	Europe	59 in	1.5 m	3.62 A	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	KSC 8305	18 V	Positive Center	60335-1 60601-1 62368-1		1.18 in	2.44 in			2.56 in	80 VAC	264 VAC	70 °C	-30 ░C	65 W	Wall Mount (Class II)	75 mW	62 mm	30 mm	65 mm
MEAN WELL USA Inc. NGE30E05-P1J	Fixed Blade	CB CE EAC	Europe	47 "	1.2 m	4 A	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	KSC 8305	5 V	Positive Center	60335-1 60601-1 62368-1		1.18 in	2.44 in			2.56 in	80 VAC	264 VAC	70 °C	-30 ░C	20 W	Wall Mount (Class II)	75 mW	62 mm	30 mm	65 mm
MEAN WELL USA Inc. NGE65E48-P1J	Fixed Blade	CB CE EAC	Europe	59 in	1.5 m	1.36 A	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	KSC 8305	48 V	Positive Center	60335-1 60601-1 62368-1		1.18 in	2.44 in			2.56 in	80 VAC	264 VAC	70 °C	-30 ░C	65 W	Wall Mount (Class II)	75 mW	62 mm	30 mm	65 mm
MEAN WELL USA Inc. NGE45U09-P1J	Fixed Blade	CB cULus cURus FCC PSE TUV	North America	39 in	1 m	4.5 A	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	NEMA 1-15P	9 V	Positive Center	60335-1 60601-1 62368-1		1.18 in	2.44 in			2.56 in	80 VAC	264 VAC	70 °C	-30 ░C	41 W	Wall Mount (Class II)	75 mW	62 mm	30 mm	65 mm
MEAN WELL USA Inc. NGE18E24-P1J	Fixed Blade	CB CE EAC	Europe	59 in	1.5 m	750 mA	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	KSC 8305	24 V	Positive Center	60335-1 60601-1 62368-1	1.1 in	48 mm	55 mm	1.89 in	2.17 "	28 mm	80 VAC 113 VDC	264 VAC 370 VDC	70 °C	-30 ░C	18 W	Wall Mount (Class II)	75 mW
MEAN WELL USA Inc. NGE90E24-P1J	Fixed Blade	CB CE EAC	Europe	47 "	1.2 m	3.75 A	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	KSC 8305	24 V	Positive Center	60335-1 60601-1 62368-1	3.37 in	30 mm	62 mm	1.18 in	2.44 in	85.5 mm	80 VAC	264 VAC	70 °C	-30 ░C	90 W	Wall Mount (Class II)	75 mW
MEAN WELL USA Inc. NGE90E48-P1J	Fixed Blade	CB CE EAC	Europe	47 "	1.2 m	1.875 A	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	KSC 8305	48 V	Positive Center	60335-1 60601-1 62368-1	3.37 in	30 mm	62 mm	1.18 in	2.44 in	85.5 mm	80 VAC	264 VAC	70 °C	-30 ░C	90 W	Wall Mount (Class II)	75 mW
MEAN WELL USA Inc. NGE18U09-P1J	Fixed Blade	CB cULus cURus FCC PSE TUV	North America	59 in	1.5 m	2 A	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	NEMA 1-15P	9 V	Positive Center	60335-1 60601-1 62368-1	1.1 in	48 mm	55 mm	1.89 in	2.17 "	28 mm	80 VAC 113 VDC	264 VAC 370 VDC	70 °C	-30 ░C	18 W	Wall Mount (Class II)	75 mW
