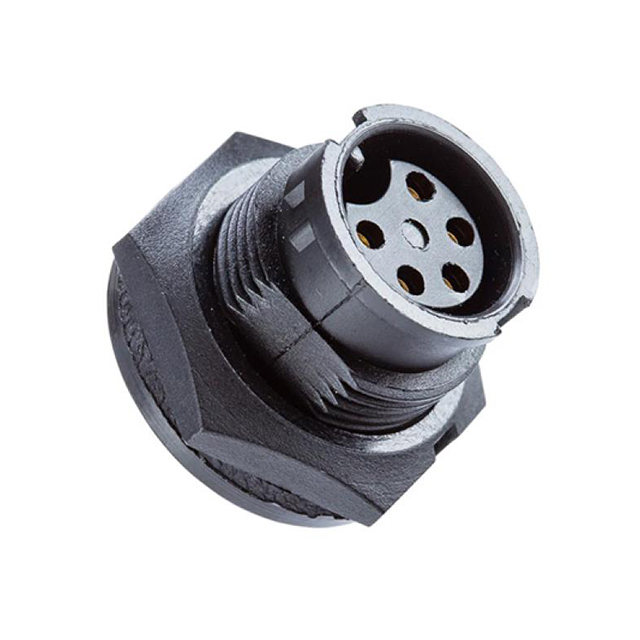

BDU-08PMFP-LC7001
ActiveAmphenol LTW
CERES, STANDARD SIZE, 5A+2A, 08
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BDU-08PMFP-LC7001
ActiveAmphenol LTW
CERES, STANDARD SIZE, 5A+2A, 08
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BDU-08PMFP-LC7001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 2 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | B |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.68 | |
| 10 | $ 12.84 | |||
| 25 | $ 11.61 | |||
| 50 | $ 10.78 | |||
| 100 | $ 10.03 | |||
| 250 | $ 9.14 | |||
| 500 | $ 8.54 | |||
| 1000 | $ 8.00 | |||
Description
General part information
BDU-08PMFP Series
8 Position Circular Connector Receptacle, Female Sockets Solder
