2SA1222-T-AZ
ActiveRenesas Electronics Corporation
SMALL SIGNAL BIPOLAR TRANSISTOR
Deep-Dive with AI
Search across all available documentation for this part.
2SA1222-T-AZ
ActiveRenesas Electronics Corporation
SMALL SIGNAL BIPOLAR TRANSISTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SA1222-T-AZ |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 500 mA |
| Current - Collector Cutoff (Max) | 200 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 100 |
| Frequency - Transition | 45 MHz |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |

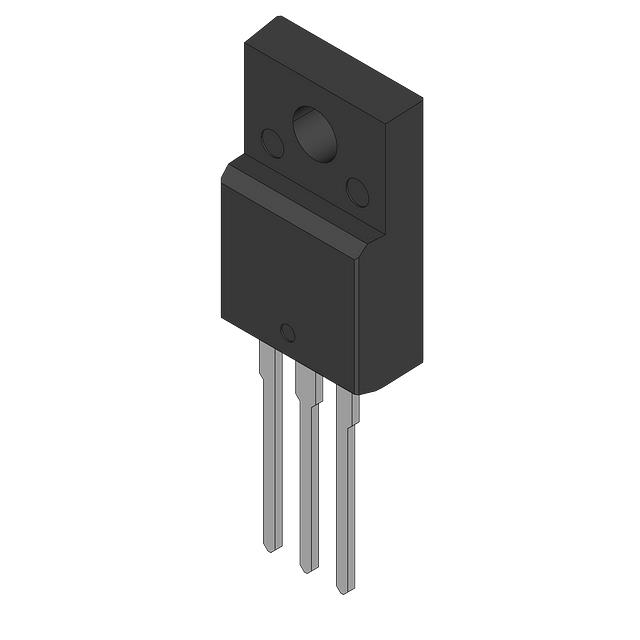

| Package / Case | 3-SSIP |
| Power - Max [Max] | 1 W |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic [Max] | 900 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 160 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 628 | $ 0.48 | |
2SA1222 Series
Bipolar Power Transistors
| Part | Vce Saturation (Max) @ Ib, Ic [Max] | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Current - Collector (Ic) (Max) [Max] | Mounting Type | Power - Max [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Frequency - Transition | Operating Temperature | Package / Case | Transistor Type | Current - Collector Cutoff (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation 2SA1222-T-AZ | 900 mV | 100 | 500 mA | Through Hole | 1 W | 160 V | 45 MHz | 150 °C | 3-SSIP | PNP | 200 nA |
Description
General part information
2SA1222 Series
A wide variety of products are rolled out, for example, for uses at high temperature (up to 175°C applicable), high power, and low Vce (sat), and others.
