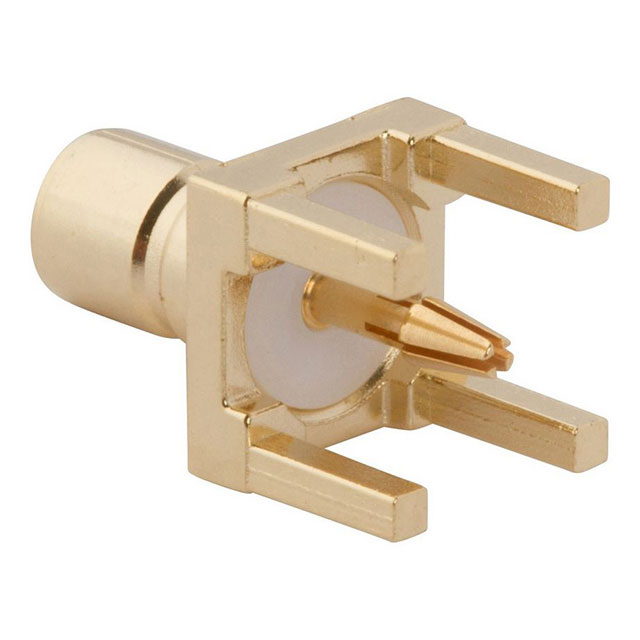

903-499J-51P

Active

Amphenol RF

CONN SMB RCPT STR 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB RCPT STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	903-499J-51P

Body Finish	Gold
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Connector Style	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Center Contact Plating	Housing Color	Dielectric Material	Insertion Loss	Connector Type	Body Finish	Frequency - Max [Max]	Body Material	Center Contact Material	Shield Termination	Mounting Type	Mating Cycles	Impedance	Contact Termination
Amphenol RF 903-499J-51P	SMB	1	-65 ░C	165 °C	Snap-On	Gold	Gold	Polytetrafluoroethylene (PTFE)	0.3 dB	Male Pin Receptacle	Gold	4 GHz	Zinc Die Cast	Brass	Solder	Through Hole	500	50 Ohms	Solder
Amphenol RF 903-499J-51P2	SMB	1	-65 ░C	165 °C	Snap-On	Gold	Gold	Polytetrafluoroethylene (PTFE)	0.3 dB	Jack Male Pin	Gold	4 GHz	Zinc Die Cast	Brass	Solder	Through Hole	500	50 Ohms	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB Connector Receptacle, Male Pin 50 Ohms Through Hole Solder
