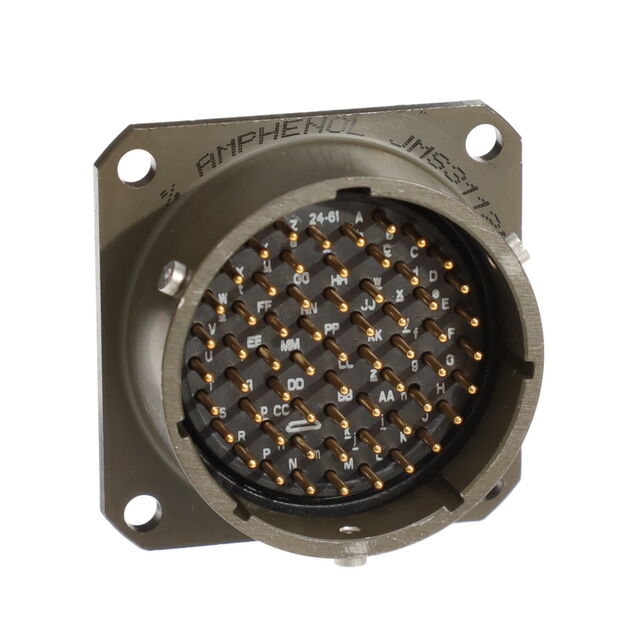

MS3112E24-61P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3112E24-61P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3112E24-61P |
|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 61 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 61 |
| Shell Size - Insert [Min] | 24 |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 169.80 | |
| 10 | $ 157.35 | |||
| 25 | $ 151.69 | |||
| 50 | $ 150.56 | |||
| Bulk | 1 | $ 56.60 | ||
| 10 | $ 54.91 | |||
| 25 | $ 53.32 | |||
| 50 | $ 50.40 | |||
| 100 | $ 49.06 | |||
MS3112E24 Series
MIL-26482 MS/PT/CMB RECEPT
| Part | Contact Material | Grade | Applications | Ingress Protection | Shell Material | Mounting Feature | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Fastening Type | Number of Positions | Current Rating (Amps) | Shell Finish | Primary Material | Color | Insert Material | Voltage Rating | Contact Finish - Mating | Orientation | Shielding | Qualification | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3112E24-61P | Copper Alloy | Military | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Environment Resistant | Aluminum | Flange | 61 | 24 | Bayonet Lock | 61 | 7.5 A | Olive Drab Chromate over Cadmium | Metal | Olive Drab | Neoprene | 600 VAC | Gold | N | Unshielded | MIL-DTL-26482 Series I | Male Pins, Receptacle | -55 °C | 125 °C |
Description
General part information
MS3112E24 Series
61 Position Circular Connector Receptacle, Male Pins Solder Cup
Documents
Technical documentation and resources
