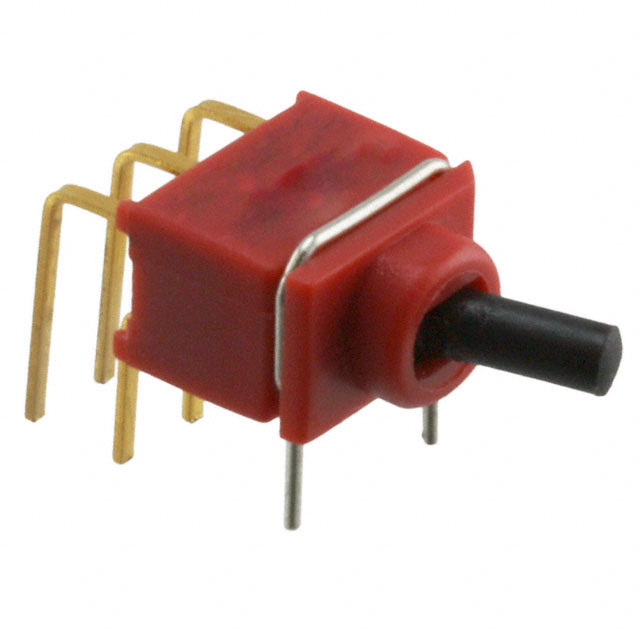

200UDP1T1A1M6RE

Active

E-Switch

20V 20V DPDT STRAIGHT PLUGIN TOGGLE SWITCHES ROHS

Search across all available documentation for this part.

Active

E-Switch

20V 20V DPDT STRAIGHT PLUGIN TOGGLE SWITCHES ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole, Right Angle

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	200UDP1T1A1M6RE	200UDP1 Series

Actuator Length [x]	3.8 mm	3.8 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	DPDT	DPDT
Current Rating (Amps)	0.4 VA	0.4 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle	Through Hole, Vertical, Right Angle, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	20 V	20 V
Voltage Rating - DC	20 V	20 V

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Illumination	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)	Bushing Thread	Switch Function	Mounting Type	Actuator Length [x]	Ingress Protection	Voltage Rating - AC	Actuator Type	Termination Style	Voltage Rating - DC	Circuit
E-Switch 200UDP1T1A1M7RE	Non-Illuminated	40000 Cycles	-30 ░C	85 °C	Epoxy Sealed Terminals	0.4 VA	Unthreaded	On-On	Right Angle, Through Hole, Vertical	3.8 mm	IP67 - Dust Tight, Waterproof	20 V	Standard Round	PC Pin	20 V	DPDT
E-Switch 200UDP1T1A1M2RE	Non-Illuminated	40000 Cycles	-30 ░C	85 °C	Epoxy Sealed Terminals	0.4 VA	Unthreaded	On-On	Through Hole	3.8 mm	IP67 - Dust Tight, Waterproof	20 V	Standard Round	PC Pin	20 V	DPDT
E-Switch 200UDP1T1A1M6RE	Non-Illuminated	40000 Cycles	-30 ░C	85 °C	Epoxy Sealed Terminals	0.4 VA	Unthreaded	On-On	Through Hole, Right Angle	3.8 mm	IP67 - Dust Tight, Waterproof	20 V	Standard Round	PC Pin	20 V	DPDT
