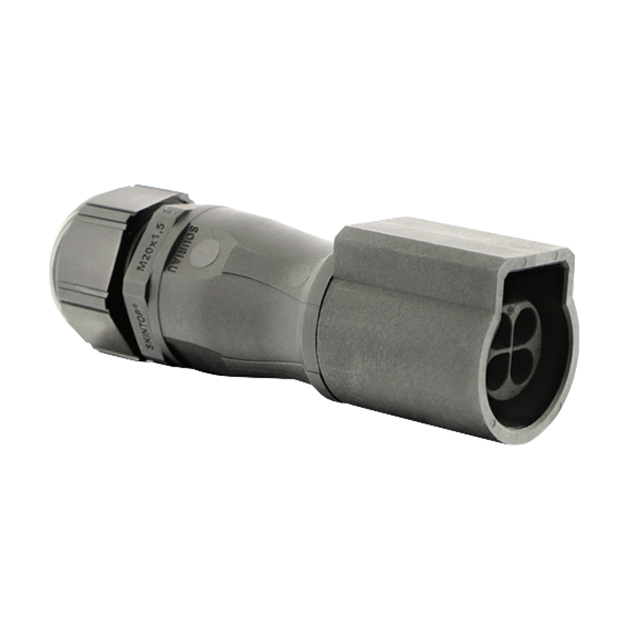

UTL1JC103G1S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG F/M 4POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG F/M 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	UTL1JC103G1S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	10-3
Shielding	Unshielded
Type	For Female Sockets and Male Pins

Part	Insert Material	Ingress Protection	Housing Color	Connector Type	Contact Type	Features	Contact Shape	Number of Positions	Shielding	Fastening Type	Mounting Type	Contact Size	Note	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Type	Material Flammability Rating	Shell Size - Insert
Souriau-Sunbank by Eaton UTL1JC103G1S	Nylon Polyamide (PA)	IP68 IP69K	Black	Receptacle Housing	Crimp	Backshell	Circular	4	Unshielded	Latch Lock	Free Hanging (In-Line)	16	Contacts Not Included	Keyed	-40 °C	105 ░C	For Female Sockets and Male Pins	UL94 V-0	10-3
Souriau-Sunbank by Eaton UTL1JC103G1P	Nylon Polyamide (PA)	IP68 IP69K	Black	Receptacle Housing	Crimp	Backshell	Circular	4	Unshielded	Latch Lock	Free Hanging (In-Line)	16	Contacts Not Included	Keyed	-40 °C	105 ░C	For Female Sockets and Male Pins	UL94 V-0	10-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell

Technical documentation and resources

No documents available
