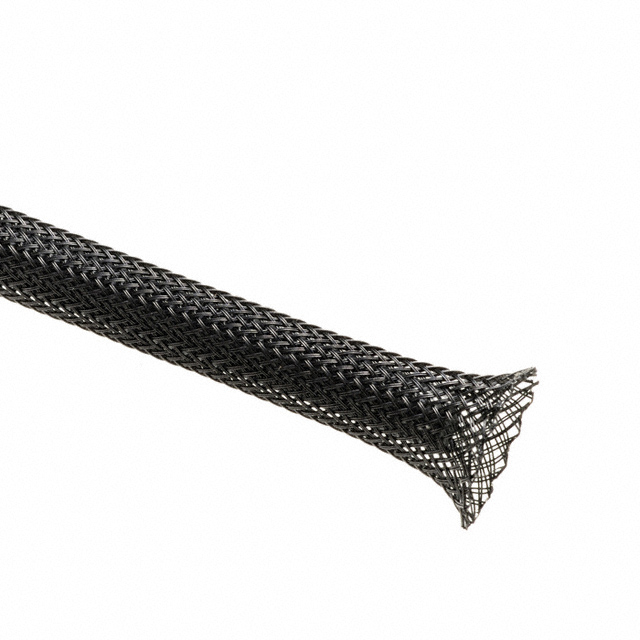

RYN0.50BK100
ActiveTechflex
EXPAND SLEEVE 1/2" X 100' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
RYN0.50BK100
ActiveTechflex
EXPAND SLEEVE 1/2" X 100' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RYN0.50BK100 |
|---|---|
| Abrasion Protection | Wear Resistant, Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 0.75 in |
| Diameter - Inside, Expanded [diameter] | 19.05 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.5 in |
| Diameter - Inside, Non-Expanded [diameter] | 12.7 mm |
| Heat Protection | Flame Resistant, Heat Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Liquid Protection | Fuel Resistant, Moisture Resistant |
| Material | Polyphenylene Sulfide (PPS), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -70 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.024 in |
| Wall Thickness | 0.61 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 112.29 | |
| 5 | $ 105.27 | |||
| 10 | $ 98.25 | |||
| 25 | $ 93.34 | |||
| 50 | $ 91.23 | |||
| 100 | $ 89.13 | |||
Description
General part information
RYN0 Series
Sleeve X 100' (30.48m) Black
