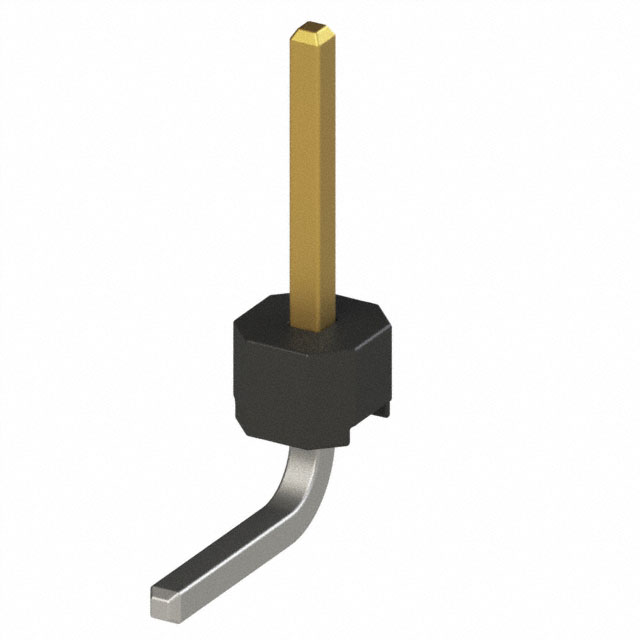

951101-7622-AR
Active3M (TC)
CONN HEADER R/A 1POS
Deep-Dive with AI
Search across all available documentation for this part.
951101-7622-AR
Active3M (TC)
CONN HEADER R/A 1POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 951101-7622-AR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Length - Mating | 4.4 mm |
| Contact Length - Mating | 0.173 in |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.17 | |
| 10 | $ 0.14 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 5000 | $ 0.07 | |||
| 10000 | $ 0.06 | |||
Description
General part information
951101 Series
Connector Header Through Hole, Right Angle 1 position
