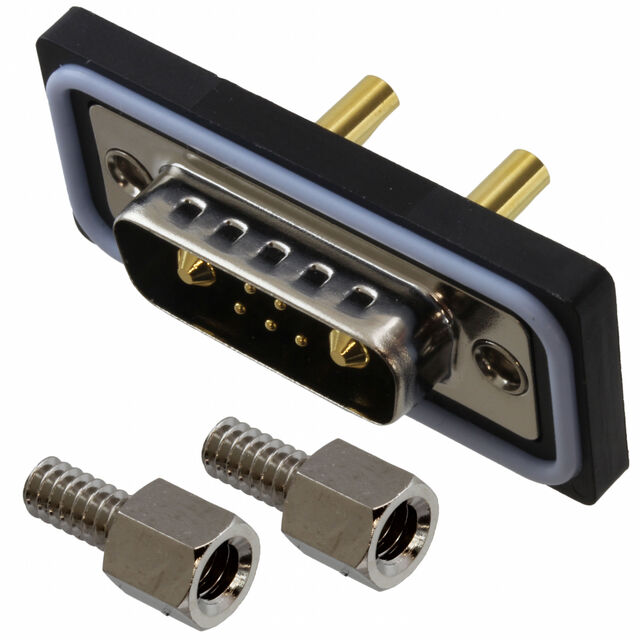

627-W7W-222-012
ActiveEDAC Inc.
CONN D-SUB PLUG 7POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsInterconnect Solutions Brochure
627-W7W-222-012
ActiveEDAC Inc.
CONN D-SUB PLUG 7POS PNL MNT
Deep-Dive with AI
DocumentsInterconnect Solutions Brochure
Technical Specifications
Parameters and characteristics for this part
| Specification | 627-W7W-222-012 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Board Side, 4-40 |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 126 | $ 8.39 | |
Description
General part information
627-W7W Series
7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
