422-576-224

Obsolete

Aven Tools

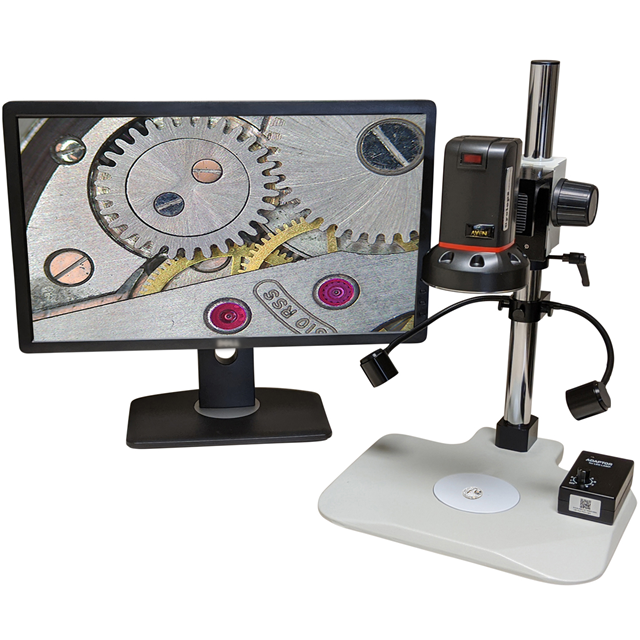

CYCLOPS 2.0 DIGITAL MICROSCOPE W

Search across all available documentation for this part.

Obsolete

Aven Tools

CYCLOPS 2.0 DIGITAL MICROSCOPE W

Technical Specifications

Parameters and characteristics for this part

Specification	422-576-224

Field of View [Max]	40 mm
Field of View [Max]	1.57 in
Field of View [Min]	1.07 mm
Field of View [Min]	0.04 in
Illumination	LED
Includes	USB Cable, Cable, Adapter, Stand
Interface	HDMI, USB
Magnification Range [Max]	140 x
Magnification Range [Min]	13 x
Type	Digital, Microscope
Working Distance [x]	0.25 "
Working Distance [x]	6.3 mm
Working Distance [y]	214 mm
Working Distance [y]	8.43 "

CYCLOPS 2.0 DIGITAL MICROSCOPE W

Part	Type	Magnification Range [Min]	Magnification Range [Max]	Working Distance [y]	Working Distance [y]	Working Distance [x]	Working Distance [x]	Interface	Illumination	Field of View [Min]	Field of View [Max]	Field of View [Max]	Field of View [Min]	Includes
Aven Tools 422-576-224	Digital, Microscope	13 x	140 x	214 mm	8.43 "	0.25 "	6.3 mm	HDMI, USB	LED	1.07 mm	40 mm	1.57 in	0.04 in	Adapter, Cable, Stand, USB Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1774.49

General part information

Microscope, Digital 13x ~ 140x LED

Technical documentation and resources

No documents available
