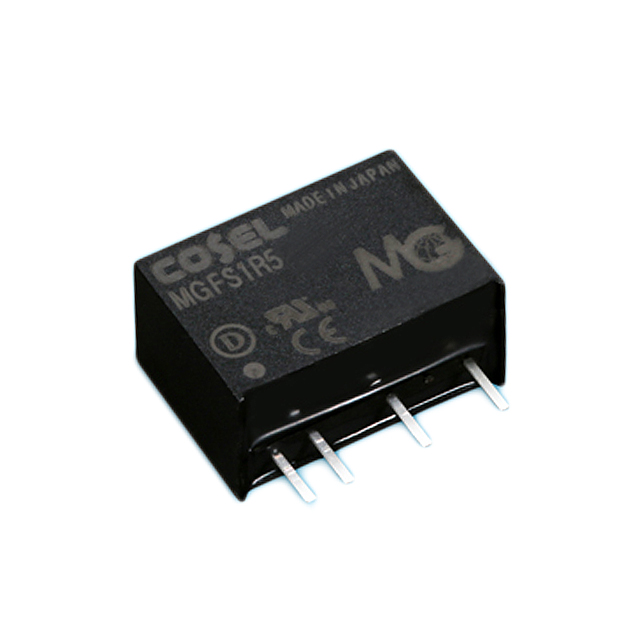

MGS1R5123R3
ActiveCosel USA, Inc.
DC DC CONVERTER 3.3V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGS1R5123R3
ActiveCosel USA, Inc.
DC DC CONVERTER 3.3V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGS1R5123R3 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 80 % |
| Features | OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SIP Module |
| Size / Dimension [x] | 0.67 in |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [y] | 8.5 mm |
| Size / Dimension [y] | 0.33 in |
| Size / Dimension [z] | 0.47 " |
| Size / Dimension [z] | 12 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.50 | |
| 5 | $ 11.41 | |||
| 10 | $ 11.32 | |||
| 25 | $ 11.15 | |||
| 50 | $ 10.80 | |||
| 100 | $ 9.76 | |||
| 250 | $ 9.58 | |||
| 500 | $ 9.41 | |||
Description
General part information
MGS1R5123 Series
Isolated Module DC DC Converter 1 Output 3.3V 400mA 9V - 18V Input
