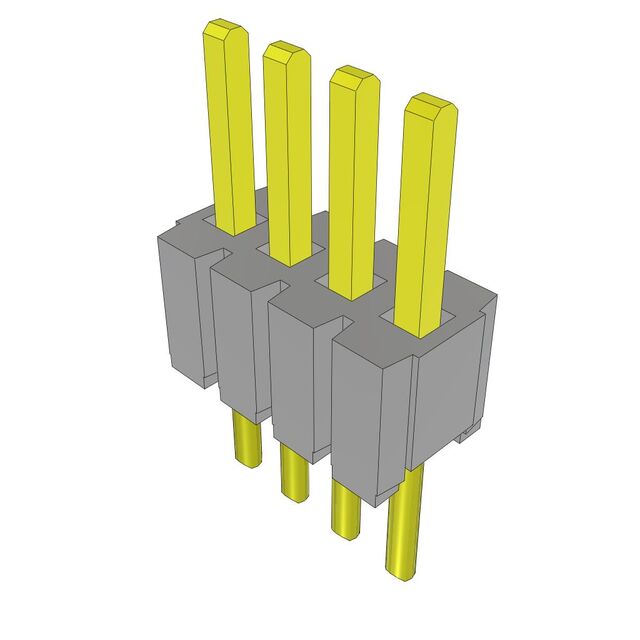

HMTMS-104-25-G-S-125

Active

Samtec Inc.

CONN HDR .050" 4POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR .050" 4POS

Technical Specifications

Parameters and characteristics for this part

Specification	HMTMS-104-25-G-S-125

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post	2.67 mm
Contact Length - Post	0.105 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.38 mm
Overall Contact Length	0.33 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Shape	Number of Positions	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Insulation Color	Connector Type	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Type	Mounting Type	Termination	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. HMTMS-104-25-G-S-125	Square	4	0.1 in	2.54 mm	Phosphor Bronze	Gold	Black	Header	Push-Pull	0.05 in	1.27 mm	Gold	Unshrouded	-55 °C	125 °C	10 çin	0.25 çm	2.67 mm	0.105 in	All	1	Flash	8.38 mm	0.33 in	0.125 in	3.18 mm	Male Pin	Through Hole	Solder	Liquid Crystal Polymer (LCP)
Samtec Inc. HMTMS-104-52-G-D-190	Square	8	0.1 in	2.54 mm	Phosphor Bronze	Gold	Black	Header	Push-Pull	0.05 in	1.27 mm	Gold	Unshrouded	-55 °C	125 °C	10 çin	0.25 çm			All	2	Flash			0.19 "	4.83 mm	Male Pin	Through Hole	Solder	Liquid Crystal Polymer (LCP)	0.135 in	3.43 mm	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.22
