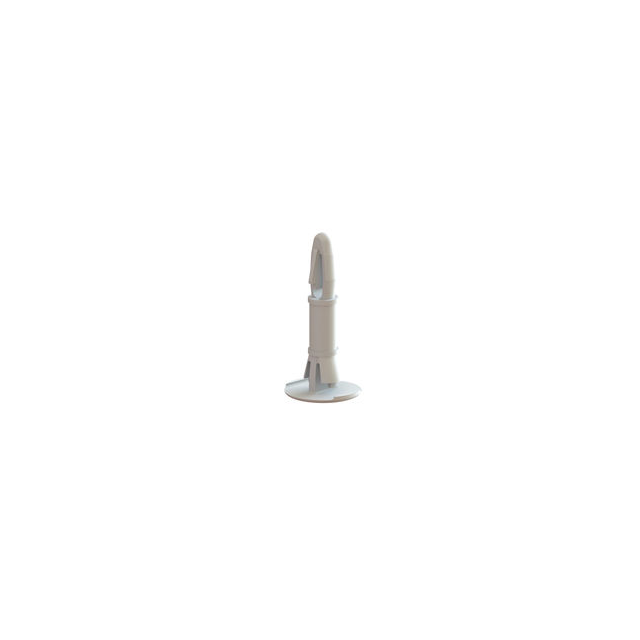

27RV00500A
ActiveEssentra Access Solutions
REVERSE LOCK PCB SUPPORT, .125/.
Deep-Dive with AI
Search across all available documentation for this part.
27RV00500A
ActiveEssentra Access Solutions
REVERSE LOCK PCB SUPPORT, .125/.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 27RV00500A |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 0.063 in |
| Mounting Panel Thickness [Max] | 1.6 mm |
| Mounting Panel Thickness [Min] | 0.059 in |
| Mounting Panel Thickness [Min] | 1.5 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 3.18 mm |
| Support Panel Thickness [Max] | 1.6 mm |
| Support Panel Thickness [Max] | 0.063 in |
| Support Panel Thickness [Min] | 1.5 mm |
| Support Panel Thickness [Min] | 0.059 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 5 | $ 0.42 | |||
| 10 | $ 0.35 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.25 | |||
Description
General part information
27RV Series
Board Support Snap Lock / Snap Lock Nylon 0.500" (12.70mm)
Documents
Technical documentation and resources
No documents available
