HSA1022RJ

Active

TE Connectivity Passive Product

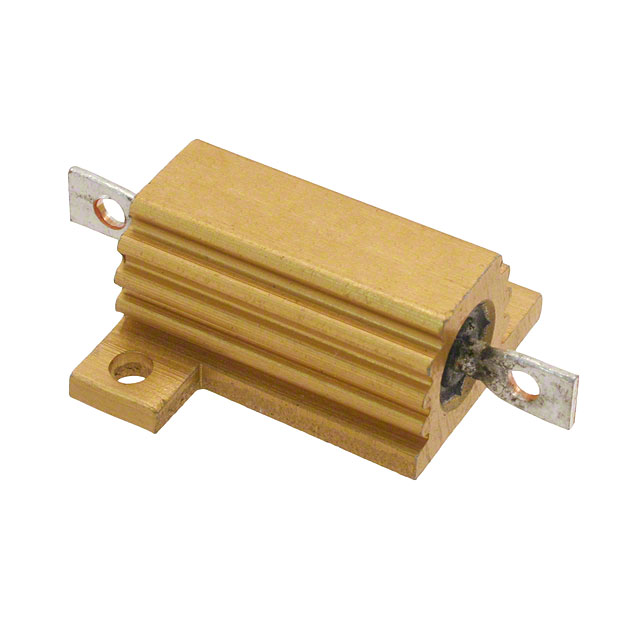

RES CHAS MNT 22 OHM 5% 16W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HSA1022RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 22 OHM 5% 16W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSA1022RJ

Coating, Housing Type	Aluminum
Composition	Wirewound
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Lead Style	Solder Lugs
Mounting Feature	Flanges
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Power (Watts)	16 W
Resistance	22 Ohms
Size / Dimension [x]	21 mm
Size / Dimension [x]	0.827 in
Size / Dimension [y]	0.827 in
Size / Dimension [y]	21 mm
Temperature Coefficient	50 ppm/°C
Tolerance	5 %

HSA10 Series

Part	Tolerance	Mounting Feature	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Coating, Housing Type	Temperature Coefficient	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lead Style	Power (Watts)
TE Connectivity Passive Product HSA101R0J	5 %	Flanges	1 Ohms	-55 °C	200 °C	Aluminum	50 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA1022RJ	5 %	Flanges	22 Ohms	-55 °C	200 °C	Aluminum	50 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA10R39J	5 %	Flanges	390 mOhms	-55 °C	200 °C	Aluminum	50 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA101K0J	5 %	Flanges	1000 Ohms	-55 °C	200 °C	Aluminum	30 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA106K8J	5 %	Flanges	6.8 kOhms	-55 °C	200 °C	Aluminum	30 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA10R68K	10 %	Flanges	680 mOhms	-55 °C	200 °C	Aluminum	50 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA10R20F	1 %	Flanges	200 mOhms	-55 °C	200 °C	Aluminum	50 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA103R3J	5 %	Flanges	3.3 Ohms	-55 °C	200 °C	Aluminum	50 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA10220RJ	5 %	Flanges	220 Ohms	-55 °C	200 °C	Aluminum	30 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W
TE Connectivity Passive Product HSA1056RJ	5 %	Flanges	56 Ohms	-55 °C	200 °C	Aluminum	50 ppm/°C	Wirewound	11 mm	0.433 in	0.827 in	21 mm	21 mm	0.827 in	Solder Lugs	16 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.36
		10	$ 2.62
		25	$ 2.17
		50	$ 1.90
		100	$ 1.67
		250	$ 1.53

Description

General part information

HSA10 Series

22 Ohms ±5% 16W Wirewound Chassis Mount Resistor
