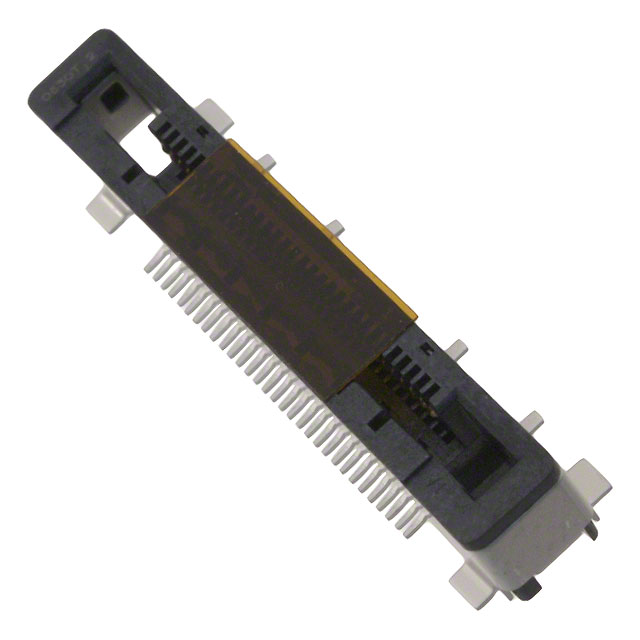

FI-RE31S-VF-R1300

Active

JAE Electronics

CARD EDGE CONNECTOR, 31 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL, RECEPTACLE, ROHS COMPLIANT

Search across all available documentation for this part.

Active

JAE Electronics

CARD EDGE CONNECTOR, 31 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL, RECEPTACLE, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	FI-RE31S-VF-R1300

Applications	Medical, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Type	Female Blade Socket
Current Rating (Amps)	0.8 A
Fastening Type	Latch Holder
Features	Solder Retention, Shielded
Insulation Height	4.65 mm
Insulation Height	0.183 in
Insulation Material	Plastic
Mated Stacking Heights	16.1 mm, 10.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	31
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Applications	Insulation Material	Connector Type	Termination	Fastening Type	Contact Type	Current Rating (Amps)	Contact Finish - Mating	Contact Material	Insulation Height	Insulation Height	Mated Stacking Heights	Style	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Mounting Type	Features
JAE Electronics FI-RE31S-VF-R1300	General Purpose Medical	Plastic	Receptacle	Solder	Latch Holder	Female Blade Socket	0.8 A	Gold	Copper Alloy	4.65 mm	0.183 in	10.1 mm 16.1 mm	Board to Cable/Wire	1	-40 °C	80 C	Tin	UL94 V-0	0.02 in	0.5 mm	31	All	Surface Mount	Shielded Solder Retention
JAE Electronics FI-RE31S-HF	General Purpose Medical	Plastic	Receptacle	Solder	Latch Holder	Female Blade Socket	0.8 A	Gold	Copper Alloy	3.75 mm	0.148 in		Board to Cable/Wire	1	-40 °C	80 C	Tin	UL94 V-0	0.02 in	0.5 mm	31	All	Surface Mount Right Angle	Shielded Solder Retention
JAE Electronics FI-RE31S-HF-R1500	General Purpose Medical	Plastic	Receptacle	Solder	Latch Holder	Female Blade Socket	0.8 A	Gold	Copper Alloy	3.75 mm	0.148 in		Board to Cable/Wire	1	-40 °C	80 C	Tin	UL94 V-0	0.02 in	0.5 mm	31	All	Surface Mount Right Angle	Shielded Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position Receptacle Connector 0.020" (0.50mm) Surface Mount Gold
