BG0903-B054-00L-00
ObsoleteNMB TECHNOLOGIES

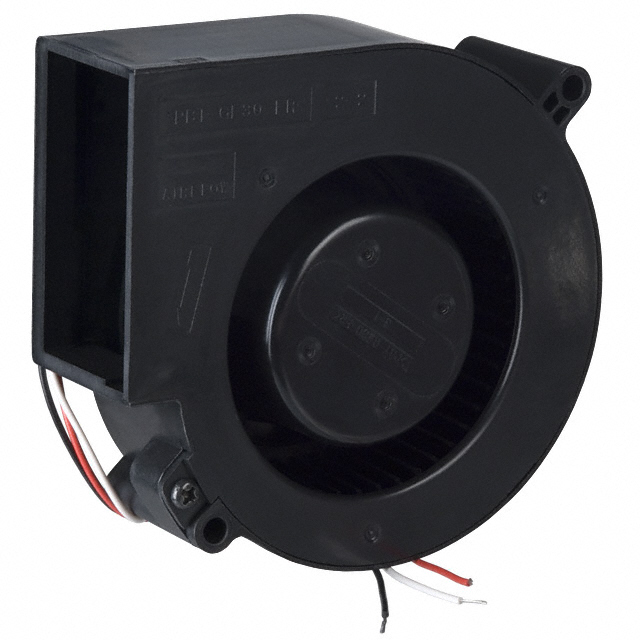

FAN BLOWER 97X33MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
BG0903-B054-00L-00
ObsoleteNMB TECHNOLOGIES
FAN BLOWER 97X33MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BG0903-B054-00L-00 |
|---|---|
| Air Flow | 28.6 CFM |
| Air Flow | 0.801 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 490 mA |
| Fan Type | Blower |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 100000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 54.5 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 11.8 W |
| RPM | 3700 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 97 mm |
| Size / Dimension [z] | 93.5 mm |
| Static Pressure | 1.373 in H2O |
| Static Pressure | 342 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 25 VDC |
| Voltage Range [Min] | 10 VDC |
| Weight | 210.01 g |
| Weight | 0.463 lb |
| Width [y] | 33 mm |
BG0903 Series
| Part | Bearing Type | Current Rating (Amps) | RPM | Voltage - Rated | Material - Frame | Static Pressure | Static Pressure | Voltage Range [Min] | Voltage Range [Max] | Weight | Weight | Fan Type | Features | Approval Agency | Material - Blade | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Noise | Air Flow | Air Flow | Termination | Size / Dimension | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Width [y] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | Ball | 0.64 A | 3200 RPM | 12 VDC | Plastic | 0.903 in H2O | 225 Pa | 8 VDC | 13.8 VDC | 210.01 g | 0.463 lb | Blower | Locked Rotor Sensor | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 51.5 dB | 0.692 mł/min | 24.7 CFM | 3 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 7.68 W | 33 mm | 100000 Hrs |
NMB TECHNOLOGIES | Ball | 1.03 A | 3700 RPM | 12 VDC | Plastic | 1.373 in H2O | 342 Pa | 8 VDC | 12.8 VDC | 210.01 g | 0.463 lb | Blower | Speed Sensor (Tach) | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 54.5 dB | 0.801 m³/min | 28.6 CFM | 3 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 12.4 W | 33 mm | 100000 Hrs |
NMB TECHNOLOGIES | Ball | 0.33 A | 3200 RPM | 24 VDC | Plastic | 0.9 in H2O | 224.2 Pa | 10 VDC | 27.6 VDC | 210.01 g | 0.463 lb | Blower | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 51.5 dB | 0.692 mł/min | 24.7 CFM | 2 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 7.92 W | 33 mm | 100000 Hrs | |
NMB TECHNOLOGIES | Ball | 1.03 A | 3700 RPM | 12 VDC | Plastic | 1.373 in H2O | 342 Pa | 8 VDC | 12.8 VDC | 210.01 g | 0.463 lb | Blower | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 54.5 dB | 0.801 m³/min | 28.6 CFM | 2 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 12.4 W | 33 mm | 100000 Hrs | |
NMB TECHNOLOGIES | Ball | 490 mA | 3700 RPM | 24 VDC | Plastic | 1.373 in H2O | 342 Pa | 10 VDC | 25 VDC | 210.01 g | 0.463 lb | Blower | Locked Rotor Sensor | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 54.5 dB | 0.801 m³/min | 28.6 CFM | 3 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 11.8 W | 33 mm | 100000 Hrs |
NMB TECHNOLOGIES | Ball | 400 mA | 2700 RPM | 12 VDC | Plastic | 8 VDC | 13.8 VDC | 210.01 g | 0.463 lb | Blower | Speed Sensor (Tach) | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 47.5 dB | 0.574 m³/min | 20.5 CFM | 3 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 4.8 W | 33 mm | 100000 Hrs | ||
NMB TECHNOLOGIES | Ball | 0.64 A | 3200 RPM | 12 VDC | Plastic | 0.9 in H2O | 224.2 Pa | 8 VDC | 13.8 VDC | 210.01 g | 0.463 lb | Blower | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 51.5 dB | 0.692 mł/min | 24.7 CFM | 2 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 7.68 W | 33 mm | 100000 Hrs | |
NMB TECHNOLOGIES | Ball | 0.21 A | 2700 RPM | 24 VDC | Plastic | 10 VDC | 27.6 VDC | 210.01 g | 0.463 lb | Blower | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 47.5 dB | 0.574 m³/min | 20.5 CFM | 2 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 5.04 W | 33 mm | 100000 Hrs | |||
NMB TECHNOLOGIES | Ball | 0.33 A | 3200 RPM | 24 VDC | Plastic | 0.903 in H2O | 225 Pa | 10 VDC | 27.6 VDC | 210.01 g | 0.463 lb | Blower | Locked Rotor Sensor | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 51.5 dB | 0.692 mł/min | 24.7 CFM | 3 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 7.92 W | 33 mm | 100000 Hrs |
NMB TECHNOLOGIES | Ball | 1.6 A | 5200 RPM | 12 VDC | Plastic | 1.935 in H2O | 482 Pa | 10.8 VDC | 12.6 VDC | 210.01 g | 0.463 lb | Blower | Speed Sensor (Tach) | CE CSA UL VDE | Plastic | -10 °C | -10 °C | 60 °C | 60 °C | 3 Wire Leads | Rectangular/Rounded | 97 mm | 93.5 mm | 19.2 W | 33 mm | 100000 Hrs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.95 | |
| 10 | $ 17.79 | |||
| 25 | $ 16.99 | |||
| 50 | $ 16.42 | |||
Description
General part information
BG0903 Series
Fan Blower 24VDC Rectangular/Rounded - 97mm L x 93.5mm H Ball 28.6 CFM (0.801m³/min) 3 Wire Leads
