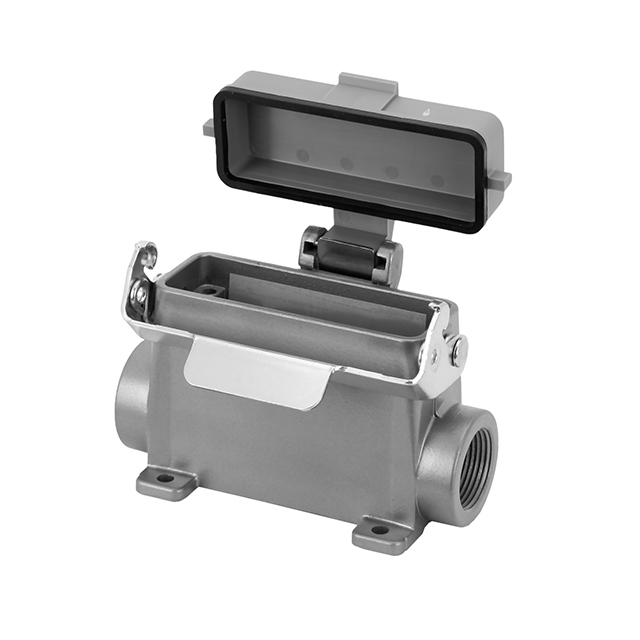

C14610N0256072

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA16 M20

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA16 M20

Technical Specifications

Parameters and characteristics for this part

Specification	C14610N0256072

Connector Type	Base - Box Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A16
Size / Dimension [x]	101 mm
Size / Dimension [x]	3.976 "
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Size / Dimension [z]	2.244 "
Size / Dimension [z]	57 mm
Style	Side Entry
Thread Size	M20

Part	Size	Features	Ingress Protection	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Style	Connector Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size
Amphenol Tuchel Industrial C14610N0258072	A16	Cover	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.244 "	1.969 in	101 mm	3.976 "	57 mm	50 mm	Side Entry	Base - Box Mount	Aluminum Alloy Die Cast	100 °C	-40 °C	M20
Amphenol Tuchel Industrial C14610N0256072	A16		IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.244 "	1.969 in	101 mm	3.976 "	57 mm	50 mm	Side Entry	Base - Box Mount	Aluminum Alloy Die Cast	100 °C	-40 °C	M20
Amphenol Tuchel Industrial C14610N0256012	A16	Feed Through	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.244 "	1.969 in	101 mm	3.976 "	57 mm	50 mm	Side Entry	Base - Box Mount	Aluminum Alloy Die Cast	100 °C	-40 °C	M20
Amphenol Tuchel Industrial C14610N0255012	A16		IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.244 "	1.969 in	101 mm	3.976 "	57 mm	50 mm	Side Entry	Base - Box Mount	Aluminum Alloy Die Cast	100 °C	-40 °C	M20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 36.67

General part information

Base - Box Mount Connector Side Entry M20 A16 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
