SS0750301F040P1A

Active

E-Switch

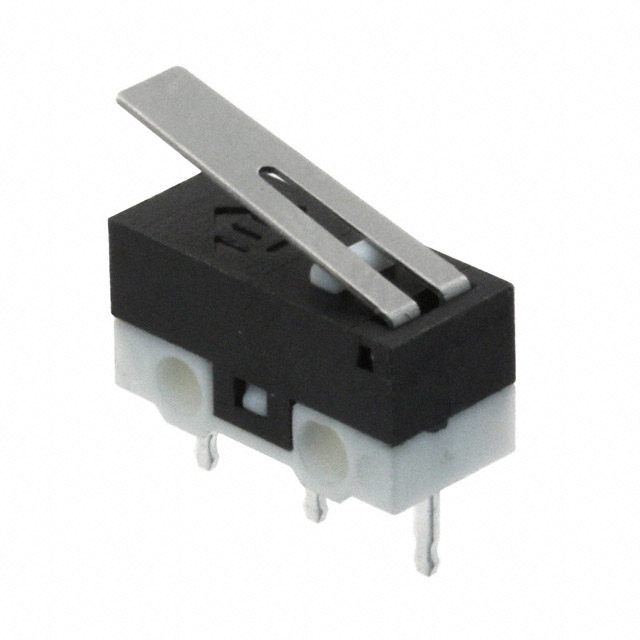

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

SS0750301F040P1A

Active

E-Switch

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS0750301F040P1A

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	40 gf
Operating Position	8.8 mm
Operating Position	0.345 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Pretravel	0.063 in
Pretravel	1.6 mm
Release Force	15 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V

SS0750303 Series

Part	Switch Function	Release Force	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position [x]	Operating Position [x]	Mechanical Life	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Pretravel	Pretravel	Circuit	Actuator Type	Mounting Type	Operating Force	Operating Position	Operating Position
E-Switch SS0750303F050S1A	On-Mom	15 gf	Solder Lug	-25 °C	75 ░C	9.7 mm	0.38 in	1000000 Cycles	100000 Cycles	3 A	125 V	0.053 in	1.35 mm	SPDT	Lever Simulated Roller	Chassis Mount	50 gf
E-Switch SS0750301F030P1A	On-Mom	10 gf	PC Pin	-25 °C	75 ░C			1000000 Cycles	100000 Cycles	3 A	125 V	0.063 in	1.6 mm	SPDT	Lever Straight	Through Hole	30 gf	8.8 mm	0.345 in
E-Switch SS0750301F020S1A	On-Mom		Solder Lug	-25 °C	75 ░C			1000000 Cycles	100000 Cycles	3 A	125 V	0.063 in	1.6 mm	SPDT	Lever Straight	Chassis Mount	20 gf	8.8 mm	0.345 in
E-Switch SS0750303F050P1A	On-Mom	15 gf	PC Pin	-25 °C	75 ░C	9.7 mm	0.38 in	1000000 Cycles	100000 Cycles	3 A	125 V	0.053 in	1.35 mm	SPDT	Lever Simulated Roller	Through Hole	50 gf
E-Switch SS0750301F040P1A	On-Mom	15 gf	PC Pin	-25 °C	75 ░C			1000000 Cycles	100000 Cycles	3 A	125 V	0.063 in	1.6 mm	SPDT	Lever Straight	Through Hole	40 gf	8.8 mm	0.345 in
E-Switch SS0750301F040S1A	On-Mom	15 gf	Solder Lug	-25 °C	75 ░C			1000000 Cycles	100000 Cycles	3 A	125 V	0.063 in	1.6 mm	SPDT	Lever Straight	Chassis Mount	40 gf	8.8 mm	0.345 in
E-Switch SS0750301F035S1A	On-On	10 gf	Solder Lug	-25 °C	75 ░C			1000000 Cycles	100000 Cycles	3 A	125 V	0.063 in	1.6 mm	SPDT	Lever Straight	Chassis Mount	35 gf	8.8 mm	0.346 in
E-Switch SS0750301F040V1A	On-Mom	15 gf	PC Pin	-25 °C	75 ░C			1000000 Cycles	100000 Cycles	3 A	125 V	0.063 in	1.6 mm	SPDT	Lever Straight	Through Hole Right Angle	40 gf	8.8 mm	0.345 in
E-Switch SS0750300F130V2A	On-On	60 gf	PC Pin	-25 °C	75 ░C	7 mm	0.276 in	1000000 Cycles	100000 Cycles	3 A	125 V	0.014 in	0.35 mm	SPDT	Round (Pin Plunger)	Through Hole Right Angle	130 gf
E-Switch SS0750303F030P1A	On-Mom	10 gf	PC Pin	-25 °C	75 ░C	9.7 mm	0.38 in	1000000 Cycles	100000 Cycles	3 A	125 V	0.053 in	1.35 mm	SPDT	Lever Simulated Roller	Through Hole	30 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.27
		10	$ 1.19
		25	$ 1.15
		50	$ 1.10
		120	$ 1.05
		360	$ 0.84
		600	$ 0.76
		1080	$ 0.74
		5040	$ 0.67

Description

General part information

SS0750303 Series

Switch SPDT Through Hole
