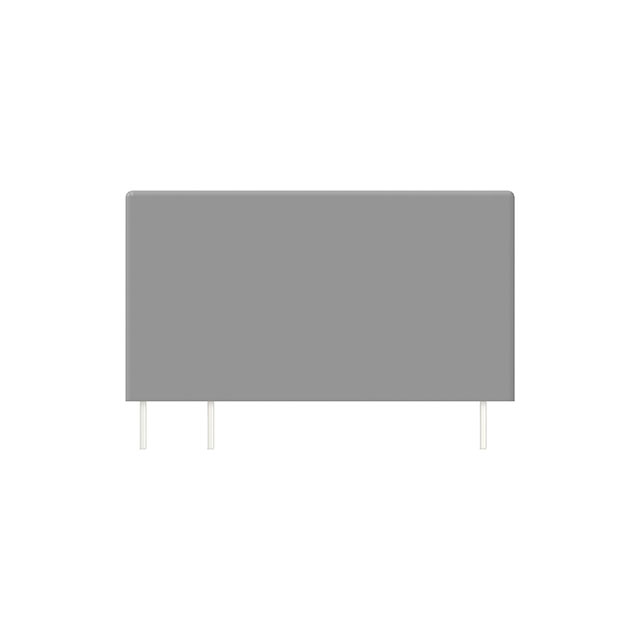

7-1415534-7
ObsoleteTE Connectivity Potter & Brumfield Relays
RTD34012WG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-1415534-7
ObsoleteTE Connectivity Potter & Brumfield Relays
RTD34012WG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-1415534-7 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 33.3 mA |
| Coil Insulation | Class F |
| Coil Resistance | 360 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1415534 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
