1.20.126.302/9000
ActiveRAFI USA

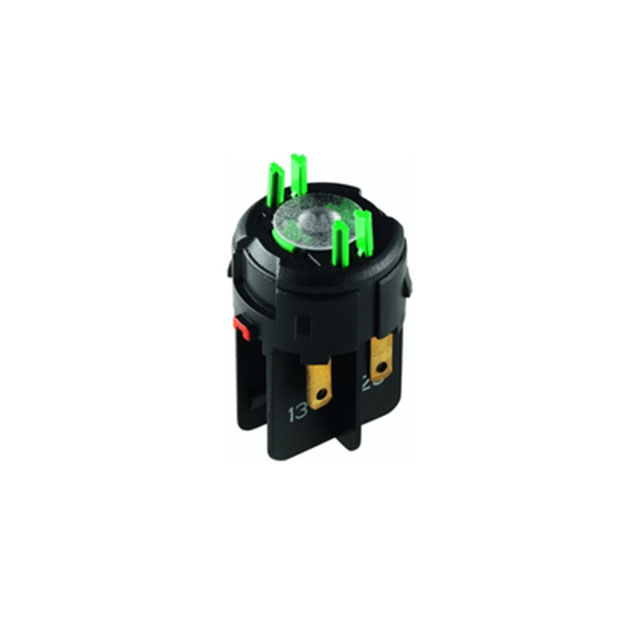

CONTACT BLOCK SPST-NO 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
1.20.126.302/9000
ActiveRAFI USA
CONTACT BLOCK SPST-NO 3A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.20.126.302/9000 |
|---|---|
| (Select First, Then Apply Filters) Compatible Series | Rafix 22 FS |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 3 A, 120 VAC |
| Requires | Switch Body |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.64 | |
| 10 | $ 12.64 | |||
| 30 | $ 11.77 | |||
| 50 | $ 11.39 | |||
| 100 | $ 10.90 | |||
| 250 | $ 10.27 | |||
| 500 | $ 9.82 | |||
| 1000 | $ 9.39 | |||
Description
General part information
1.20126 Series
Configurable Contact Block SPST-NO 3A @ 120VAC
