594L-1.5" X 72YD

Active

TapeCase

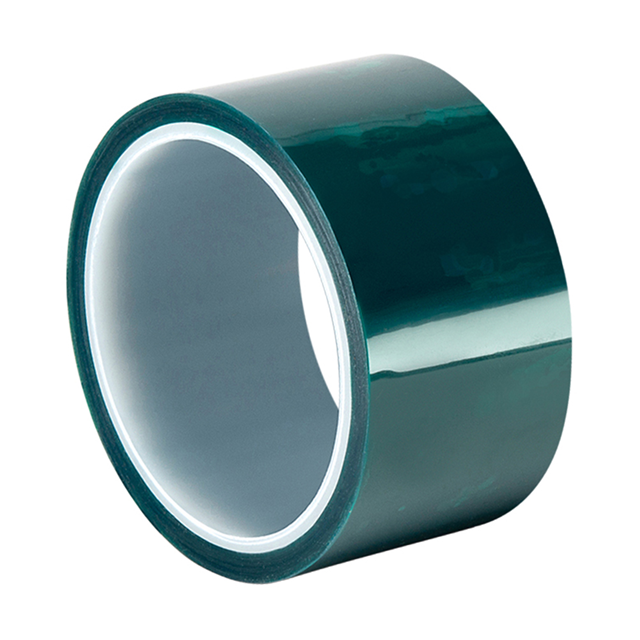

TAPE MASKING GREEN 1 1/2"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

594L-1.5" X 72YD

Active

TapeCase

TAPE MASKING GREEN 1 1/2"X72YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	594L-1.5" X 72YD

Adhesive	Silicone
Backing, Carrier	Polyester Film
Color	Green
Length	66 m
Length	216 ft
Length	72 yd
Tape Type	Masking
Temperature Range	204 °C
Temperature Range	400 °F
Thickness	0.0054 in
Thickness	0.137 mm
Thickness	5.4 mils
Thickness - Adhesive	0.036 mm
Thickness - Adhesive	1.4 mils
Thickness - Adhesive	0.0014 "
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	High Temperature, Heavy Duty, Splicing
Width	1.5 "
Width	38.1 mm
Width	1 1/2

594L Series

Part	Length	Length	Length	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Usage	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Temperature Range	Temperature Range	Color	Width	Width	Width
TapeCase 594L 2.5" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green
TapeCase 594L 28" X 72YDS	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green
TapeCase 594L-14" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green
TapeCase 594L-44" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green
TapeCase 594L-6.5" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green
TapeCase 594L 35" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green
TapeCase 594L-25" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green
TapeCase 594L-1.5" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green	1.5 "	38.1 mm	1 1/2
TapeCase 594L-3.5" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green
TapeCase 594L 30.5" X 72YD	66 m	216 ft	72 yd	0.0054 in	0.137 mm	5.4 mils	0.036 mm	1.4 mils	0.0014 "	Silicone	Heavy Duty High Temperature Splicing	Masking	0.002 "	0.051 mm	2 mils	Polyester Film	204 °C	400 °F	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5	$ 51.34

Description

General part information

594L Series

Masking Tape Silicone Adhesive Green 1.50" (38.10mm) 1 1/2" X 216' (66.0m) 72 yds
