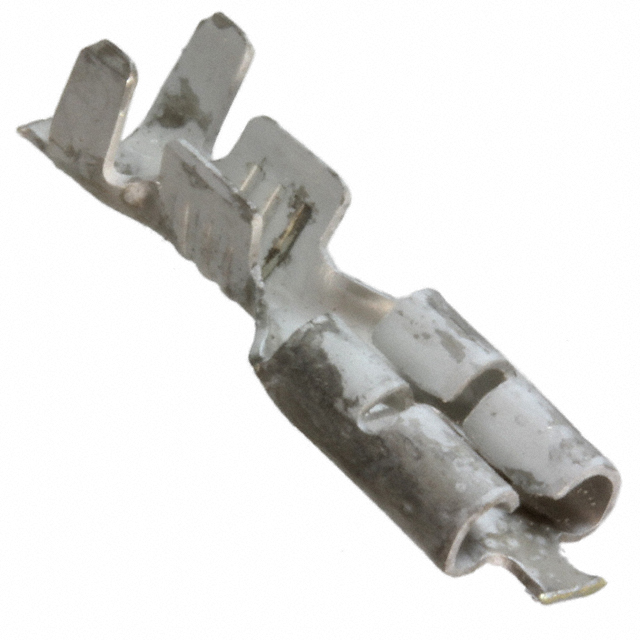

100494-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 15-20AWG 0.187
Deep-Dive with AI
Search across all available documentation for this part.
100494-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 15-20AWG 0.187
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 100494-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 3.3 mm |
| Insulation Diameter [Max] [diameter] | 0.13 " |
| Insulation Diameter [Min] [diameter] | 0.091 in |
| Insulation Diameter [Min] [diameter] | 2.31 mm |
| Length - Overall | 15 mm |
| Length - Overall [x] | 0.591 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.248 in |
| Tab Length | 6.3 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 15 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.17 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.13 | |||
| 2500 | $ 0.12 | |||
| Tape & Reel (TR) | 24000 | $ 0.09 | ||
| 48000 | $ 0.08 | |||
| 72000 | $ 0.07 | |||
100494 Series
CONN QC RCPT 15-20AWG 0.187
| Part | Tab Thickness | Tab Thickness | Terminal Type | Contact Material | Length - Overall | Length - Overall [x] | Tab Length | Tab Length | Insulation | Gender | Mounting Type | Tab Width | Tab Width | Termination | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 100494-2 | 0.032 in | 0.81 mm | Standard | Brass | 15 mm | 0.591 in | 0.248 in | 6.3 mm | Non-Insulated | Female | Free Hanging (In-Line) | 4.75 mm | 0.187 in | Crimp | Tin | 15 AWG | 20 AWG | 0.091 in | 3.3 mm | 2.31 mm | 0.13 " |
Description
General part information
100494 Series
0.187" (4.75mm) Quick Connect Female 15-20 AWG Crimp Connector Non-Insulated
Documents
Technical documentation and resources
No documents available
