Technical Specifications
Parameters and characteristics for this part
| Specification | PAM8904EGPR-T |
|---|---|
| Mounting Type | Surface Mount |

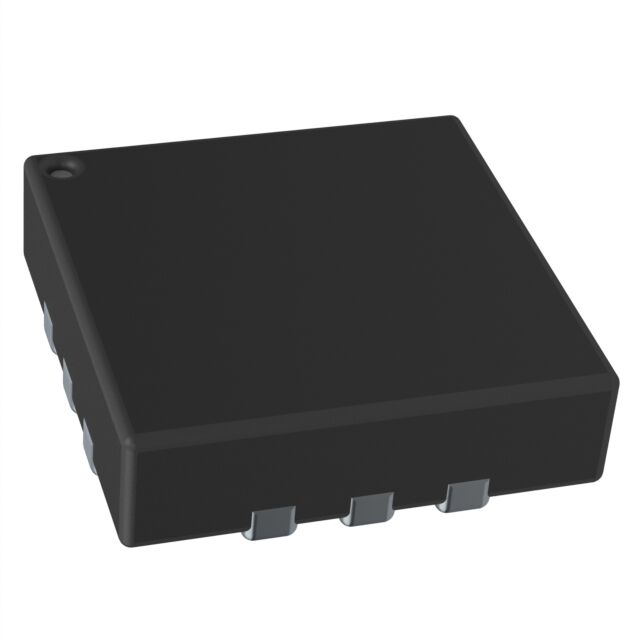

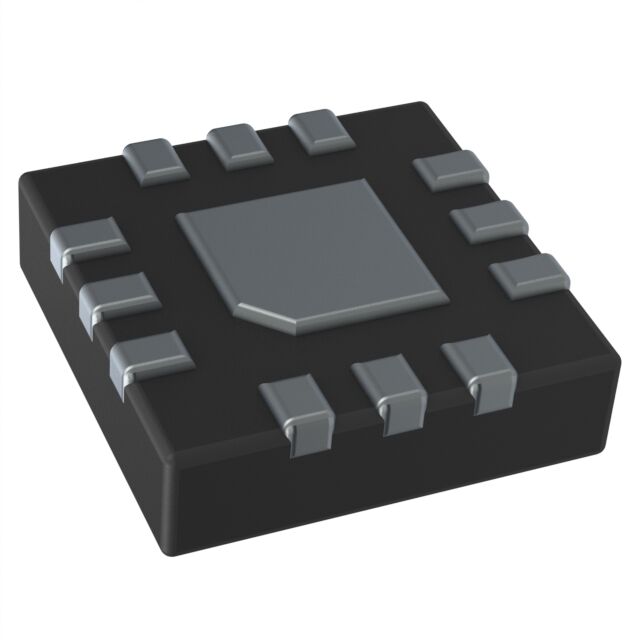

| Package / Case | 12-UFQFN Exposed Pad |
| Supplier Device Package | U-QFN2020-12 (Type UX) |
| Type | Piezo Sounder Driver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.30 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.66 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 1.30 | ||
| 10 | $ 0.79 | |||
| 25 | $ 0.66 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.35 | |||
| Tape & Reel (TR) | 3000 | $ 0.31 | ||
| 6000 | $ 0.28 | |||
| 9000 | $ 0.27 | |||
| 15000 | $ 0.26 | |||
Description
General part information
PAM8904E Series
The PAM8904E is a piezo sounder driver with integrated charge pump boost converter. The PAM8904E is capable of driving a ceramic/piezo sounder with 27VPPfrom a 4.5V power supply. The charge pump can operate in either 1x, 2x or 3x mode.
Documents
Technical documentation and resources
