Q-2000Q0003108i

Active

Amphenol Custom Cable

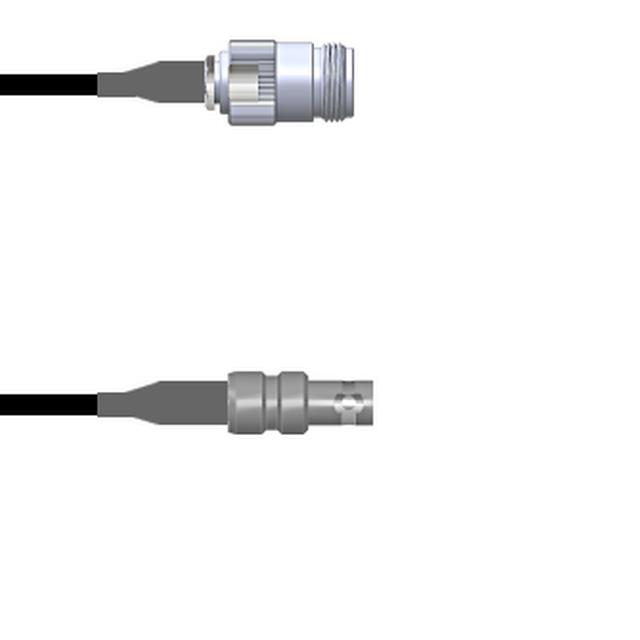

CBL ASSY HDBNC-NTYPE JCK-JCK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2000Q0003108i

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE JCK-JCK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2000Q0003108i

1st Connector	HD-BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2000Q0 Series

Part	Cable Type	Style	Color	Features	2nd Contact Gender	2nd Connector	1st Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	Length	Length	Length	2nd Connector Mounting Type	Overall Impedance	1st Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-2000Q0005001M	RG-316	HD-BNC to N-Type	Copper	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack
Amphenol Custom Cable Q-2000Q0003009i	RG-174	HD-BNC to N-Type	Black	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	228.6 mm		9 "	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack
Amphenol Custom Cable Q-2000Q0005002M	RG-316	HD-BNC to N-Type	Copper	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack
Amphenol Custom Cable Q-2000Q0003003M	RG-174	HD-BNC to N-Type	Black	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack
Amphenol Custom Cable Q-2000Q0005009i	RG-316	HD-BNC to N-Type	Copper	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	228.6 mm		9 "	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack
Amphenol Custom Cable Q-2000Q0003.25M	RG-174	HD-BNC to N-Type	Black	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz				Free Hanging (In-Line)	50 Ohms	HD-BNC Jack	9.843 "	250 mm
Amphenol Custom Cable Q-2000Q0005012i	RG-316	HD-BNC to N-Type	Copper	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	304.8 mm		12 "	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack
Amphenol Custom Cable Q-2000Q0003108i	RG-174	HD-BNC to N-Type	Black	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	2.7 m	9 ft	108 in	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack
Amphenol Custom Cable Q-2000Q0005003M	RG-316	HD-BNC to N-Type	Copper	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack
Amphenol Custom Cable Q-2000Q0003048i	RG-174	HD-BNC to N-Type	Black	Shielded	Female	N-Type Jack	Female	Free Hanging (In-Line)	6000 MHz	1200 mm	4 ft	48 in	Free Hanging (In-Line)	50 Ohms	HD-BNC Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 150.10
		25	$ 147.19
		50	$ 144.27
		100	$ 141.36
		250	$ 138.45

Description

General part information

Q-2000Q0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
