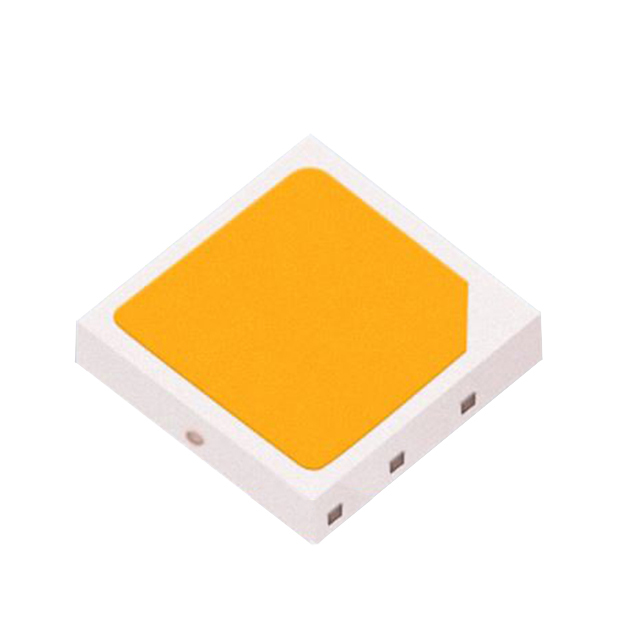

MP-3030-21C2-40-90

Active

Luminus Devices Inc.

LED MP3030 NEUT WHT 4000K 3030

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP-3030-21C2-40-90

Active

Luminus Devices Inc.

LED MP3030 NEUT WHT 4000K 3030

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP-3030-21C2-40-90

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	90
Current - Max [Max]	120 mA
Current - Test	45 mA
Flux @ 25°C, Current - Test	38 lm
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Lumens/Watt @ Current - Test	159 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [custom]	23 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	5.3 V

MP-3030 Series

Part	Supplier Device Package	Color	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Max [Max]	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Flux @ 25°C, Current - Test	Viewing Angle	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Thermal Resistance of Package [custom]	CCT (K)	Thermal Resistance of Package [custom]	Thermal Resistance of Package
Luminus Devices Inc. MP-3030-120H-30-90	1212	Warm White	90	2.68 V	Surface Mount	400 mA	184 lm/W	0.118 in	3 mm	3 mm	0.118 in	32 lm	120 °	9 °C/W	0.66 mm	0.026 in	1212	3030 Metric	65 mA
Luminus Devices Inc. MP-3030-1100-30-80		Warm White	80	3 V	Surface Mount	240 mA	138 lm/W	0.118 in	3 mm	3 mm	0.118 in	62 lm	110 °				1212	3030 Metric	150 mA	0.52 mm	0.02 "	3030	11 °C/W
Luminus Devices Inc. MP-3030-120H-35-90	1212	Warm White	90	2.68 V	Surface Mount	400 mA	184 lm/W	0.118 in	3 mm	3 mm	0.118 in	32 lm	120 °	9 °C/W	0.66 mm	0.026 in	1212	3030 Metric	65 mA					3500 K
Luminus Devices Inc. MP-3030-21C2-30-90		Warm White	90	5.3 V	Surface Mount	120 mA	138 lm/W	0.118 in	3 mm	3 mm	0.118 in	33 lm	120 °		0.7 mm	0.028 in	1212	3030 Metric	45 mA			3030			23 °C/W
Luminus Devices Inc. MP-3030-12ZH-40-80		Neutral White	80	2.69 V	Surface Mount	400 mA	206 lm/W	0.118 in	3 mm	3 mm	0.118 in	36 lm	120 °	9 °C/W	0.7 mm	0.028 in	1212	3030 Metric	65 mA			3030		4000 K
Luminus Devices Inc. MP-3030-120H-50-80	1212	Cool White	80	2.68 V	Surface Mount	400 mA	230 lm/W	0.118 in	3 mm	3 mm	0.118 in	40 lm	120 °	9 °C/W	0.66 mm	0.026 in	1212	3030 Metric	65 mA					5000 K
Luminus Devices Inc. MP-3030-210H-50-80		Cool White	80	6 V	Surface Mount	240 mA	164 lm/W	0.118 in	3 mm	3 mm	0.118 in	148 lm	110 °		0.7 mm	0.028 in	1212	3030 Metric	150 mA			3030		5000 K		16 °C/W
Luminus Devices Inc. MP-3030-120H-40-80	1212	Neutral White	80	2.68 V	Surface Mount	400 mA	230 lm/W	0.118 in	3 mm	3 mm	0.118 in	40 lm	120 °	9 °C/W	0.66 mm	0.026 in	1212	3030 Metric	65 mA					4000 K
Luminus Devices Inc. MP-3030-120H-27-90	1212	Warm White	90	2.68 V	Surface Mount	400 mA	178 lm/W	0.118 in	3 mm	3 mm	0.118 in	31 lm	120 °	9 °C/W	0.66 mm	0.026 in	1212	3030 Metric	65 mA					2700 K
Luminus Devices Inc. MP-3030-21C2-40-90		Neutral White	90	5.3 V	Surface Mount	120 mA	159 lm/W	0.118 in	3 mm	3 mm	0.118 in	38 lm	120 °		0.7 mm	0.028 in	1212	3030 Metric	45 mA			3030		4000 K	23 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.26
		100	$ 0.16
		500	$ 0.12
		1000	$ 0.11
		2000	$ 0.10
	Digi-Reel®	1	$ 0.45
		10	$ 0.26
		100	$ 0.16
		500	$ 0.12
		1000	$ 0.11
		2000	$ 0.10
	Tape & Reel (TR)	5000	$ 0.06

Description

General part information

MP-3030 Series

LED Lighting MP-3030 Horticulture, Human Centric (HCL), Salud™ White, Neutral 4000K 5.3V 45mA 120° 1212 (3030 Metric)
