09120032776

Active

HARTING

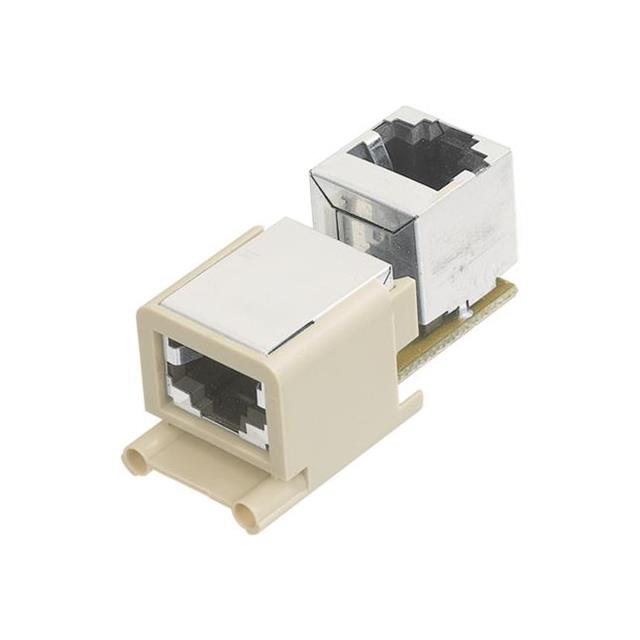

HAN-BRID RJ45 C PANEL FEED THROUGH TO ANGLED RJ45, 8WIRE

Search across all available documentation for this part.

Active

HARTING

HAN-BRID RJ45 C PANEL FEED THROUGH TO ANGLED RJ45, 8WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert, RJ45 Gray 8p8c Position IDC

Technical documentation and resources

Specification	09120032776	09120032 Series

Accessory Type	-	Insulator
Color	Gray	Gray
Connector Type	Insert, RJ45	Insert, RJ45
Current Rating (Amps)	10 A	10 A
For Use With/Related Products	-	Han-Brid® RJ45
Gender	Female	Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	8p8c	8p8c
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Specifications	-	Male, Female
Termination Style	IDC	IDC, Screw
Voltage Rating	250 VDC	24 - 250 VDC

Part	For Use With/Related Products	Accessory Type	Specifications	Housing Material	Connector Type	Termination Style	Color	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating
HARTING 09120032701	Han-Brid® RJ45	Insulator	Male
HARTING 09120032774				Polycarbonate (PC)	Insert, RJ45	IDC	Gray	UL94 V-0	10 A	8p8c	Female	125 °C	-40 °C	250 VDC
HARTING 09120032776				Polycarbonate (PC)	Insert, RJ45	IDC	Gray	UL94 V-0	10 A	8p8c	Female	125 °C	-40 °C	250 VDC
HARTING 09120032770				Polycarbonate (PC)	Insert, RJ45	Screw	Gray	UL94 V-0	10 A	8p8c	Female	125 °C	-40 °C	24 VDC
HARTING 09120032711	Han-Brid® RJ45	Insulator	Female
