ActiveEDAC Inc.

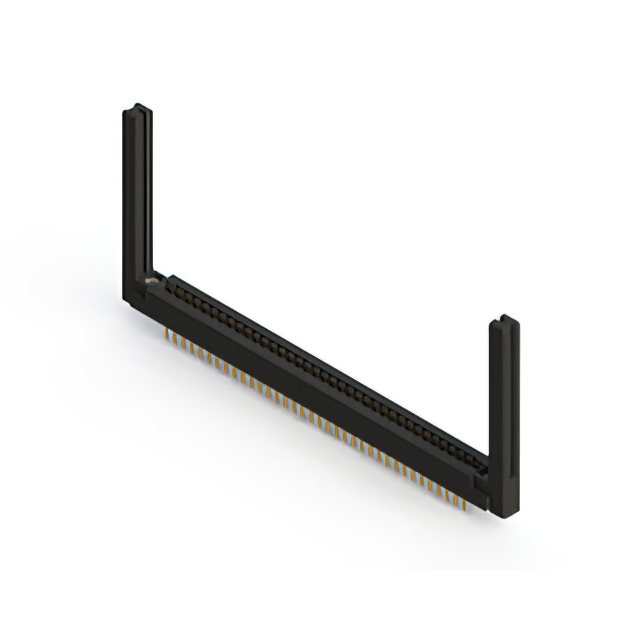

3.96MM STRAIGHT 72P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-072-522-258
ActiveEDAC Inc.
3.96MM STRAIGHT 72P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-072-522-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
357-072 Series
| Part | Number of Positions | Gender | Mounting Type | Contact Finish | Features | Pitch [x] | Pitch [x] | Contact Type | Termination | Color | Number of Positions/Bay/Row [custom] | Termination Rows | Material - Insulation | Read Out | Contact Material | Number of Rows | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 72 | Female | Through Hole | Tin | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | Solder Eyelet(s) | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | 72 | Female | Through Hole | Gold | 0.156 in | 3.96 mm | Semi Bellows | Solder | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | 72 | Female | Board Edge Straddle Mount | Gold | Card Extender | 0.156 in | 3.96 mm | Semi Bellows | Solder Eyelet(s) | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | 10 Áin | 0.25 Ám |
EDAC Inc. | 72 | Female | Through Hole | Tin | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | Solder | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | 72 | Female | Through Hole | Gold | 0.156 in | 3.96 mm | Semi Bellows | Solder | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | 72 | Female | Board Edge Straddle Mount | Tin | Card Extender | 0.156 in | 3.96 mm | Semi Bellows | Solder Eyelet(s) | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | ||
EDAC Inc. | 72 | Female | Through Hole | Tin | 0.156 in | 3.96 mm | Semi Bellows | Wire Wrap | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | |||
EDAC Inc. | 72 | Female | Through Hole Right Angle | Tin | 0.156 in | 3.96 mm | Semi Bellows | Solder | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | |||
EDAC Inc. | 72 | Female | Through Hole | Gold | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | Solder | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 72 | Female | Through Hole | Gold | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | Solder | Black | 36 | 2 | Polyester Thermoplastic | Dual | Copper Alloy | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám |
