FI-RE41S-VF

Active

JAE Electronics

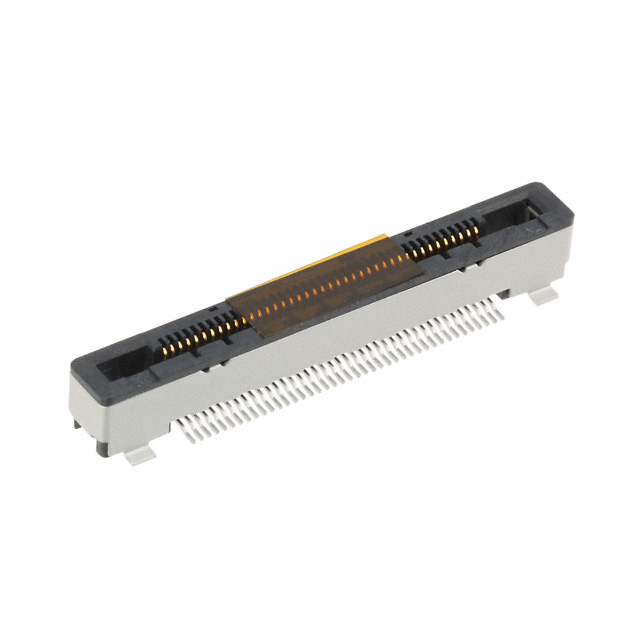

CONN RCPT 41POS 0.02 GOLD SMD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 41POS 0.02 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FI-RE41S-VF

Applications	Medical, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Type	Female Blade Socket
Current Rating (Amps)	0.8 A
Fastening Type	Latch Holder
Features	Solder Retention, Shielded
Insulation Height	4.65 mm
Insulation Height	0.183 in
Insulation Material	Plastic
Mated Stacking Heights	16.1 mm, 10.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	41
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Style	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Positions Loaded	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Contact Material	Connector Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Features	Insulation Material	Number of Rows	Number of Positions	Mounting Type	Contact Finish - Mating	Applications	Termination	Contact Type
JAE Electronics FI-RE41S-VF	Board to Cable/Wire	0.8 A	4.65 mm	0.183 in	All	10.1 mm 16.1 mm	0.02 in	0.5 mm	Copper Alloy	Receptacle	Tin	-40 °C	80 C	Latch Holder	UL94 V-0	Shielded Solder Retention	Plastic	1	41	Surface Mount	Gold	General Purpose Medical	Solder	Female Blade Socket
JAE Electronics FI-RE41S-VF-R1300	Board to Cable/Wire	0.8 A	4.65 mm	0.183 in	All	10.1 mm 16.1 mm	0.02 in	0.5 mm	Copper Alloy	Receptacle	Tin	-40 °C	80 C	Latch Holder	UL94 V-0	Shielded Solder Retention	Plastic	1	41	Surface Mount	Gold	General Purpose Medical	Solder	Female Blade Socket
JAE Electronics FI-RE41S-HF-R1500	Board to Cable/Wire	0.8 A	3.75 mm	0.148 in	All		0.02 in	0.5 mm	Copper Alloy	Receptacle	Tin	-40 °C	80 C	Latch Holder	UL94 V-0	Shielded Solder Retention	Plastic	1	41	Surface Mount Right Angle	Gold	General Purpose Medical	Solder	Female Blade Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

41 Position Receptacle Connector 0.020" (0.50mm) Surface Mount Gold
