LH79520N0M000B1

Unknown

SHARP/Socle Technology

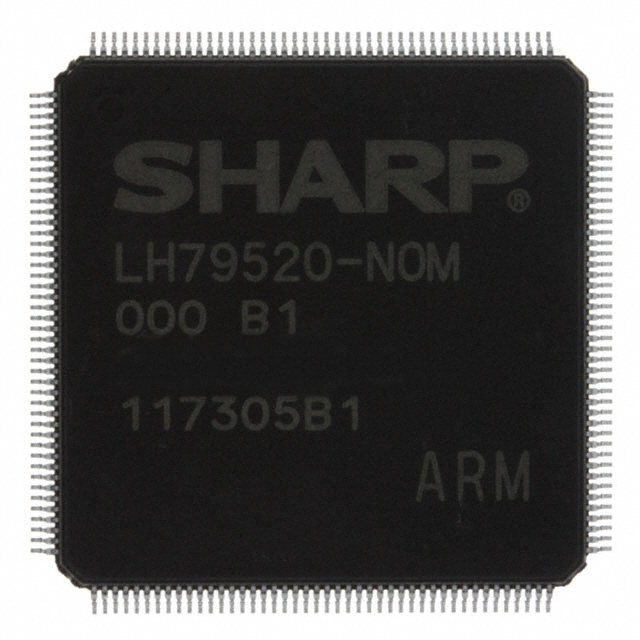

IC MCU 32BIT ROMLESS 176LQFP

Search across all available documentation for this part.

Unknown

SHARP/Socle Technology

IC MCU 32BIT ROMLESS 176LQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 13.92

General part information

ARM7® BlueStreak ; LH7 Microcontroller IC 32-Bit Single-Core 77.4MHz ROMless

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LH79520N0M000B1	LH795 Series

Connectivity	IrDA, SPI, SSP, Microwire, UART/USART	IrDA, SPI, SSP, Microwire, UART/USART, Ethernet, USB, EBI/EMI, I2C
Core Processor	ARM7®	ARM7®
Core Size	32-Bit Single-Core	32-Bit Single-Core
Data Converters	-	10
Data Converters	-	10 b
Mounting Type	Surface Mount	Surface Mount
Number of I/O	64	64 - 88
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal
Package / Case	176-LQFP	176-LQFP, 208-LFBGA
Peripherals	WDT, LCD, PWM, DMA	WDT, LCD, PWM, DMA, I2S, Brown-out Detect/Reset, POR
Program Memory Type	ROMless	ROMless
RAM Size	-	16 K
Speed	77.4 MHz	77.4 MHz
Supplier Device Package	-	208-CABGA (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.62 V	1.62 - 1.7 V

IC MCU 32BIT ROMLESS 176LQFP

Part	Core Processor	Connectivity	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Program Memory Type	Speed	Package / Case	Peripherals	Number of I/O	Data Converters [x]	Data Converters [y]	Supplier Device Package	RAM Size
SHARP/Socle Technology LH79520N0Q000B0	ARM7®	IrDA, Microwire, SPI, SSP, UART/USART	85 °C	-40 °C	32-Bit Single-Core	Internal	3.6 V	1.62 V	Surface Mount	ROMless	77.4 MHz	176-LQFP	DMA, LCD, PWM, WDT	64
SHARP/Socle Technology LH79524N0F100A0	ARM7®	EBI/EMI, Ethernet, I2C, SSP, UART/USART, USB	85 °C	-40 °C	32-Bit Single-Core	Internal	3.6 V	1.7 V	Surface Mount	ROMless	77.4 MHz	208-LFBGA	Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT	88	10	10 b	208-CABGA (14x14)	16 K
SHARP/Socle Technology LH79520N0M000B1	ARM7®	IrDA, Microwire, SPI, SSP, UART/USART	85 °C	-40 °C	32-Bit Single-Core	Internal	3.6 V	1.62 V	Surface Mount	ROMless	77.4 MHz	176-LQFP	DMA, LCD, PWM, WDT	64
