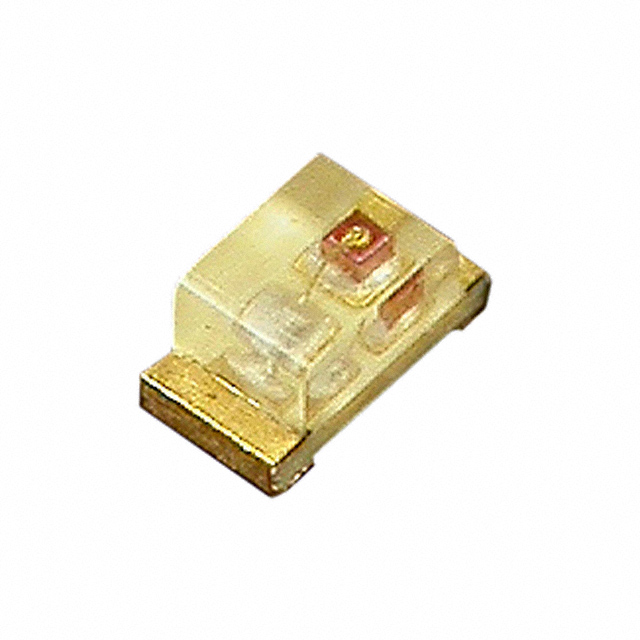

XZCWD53F-1
ActiveSunLED
LED WHITE CHIP 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZCWD53F-1
ActiveSunLED
LED WHITE CHIP 0603 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCWD53F-1 |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Lens Color | Yellow |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 248 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| Digi-Reel® | 1 | $ 0.42 | ||
| Tape & Reel (TR) | 2000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
| 100000 | $ 0.08 | |||
Description
General part information
XZCWD53 Series
White LED Indication - Discrete 3.3V 0603 (1608 Metric)
